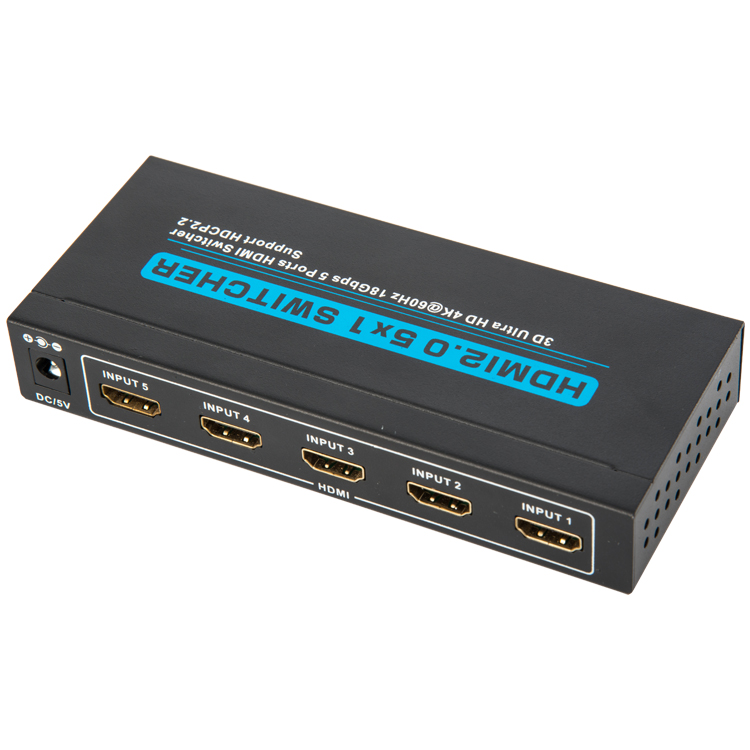

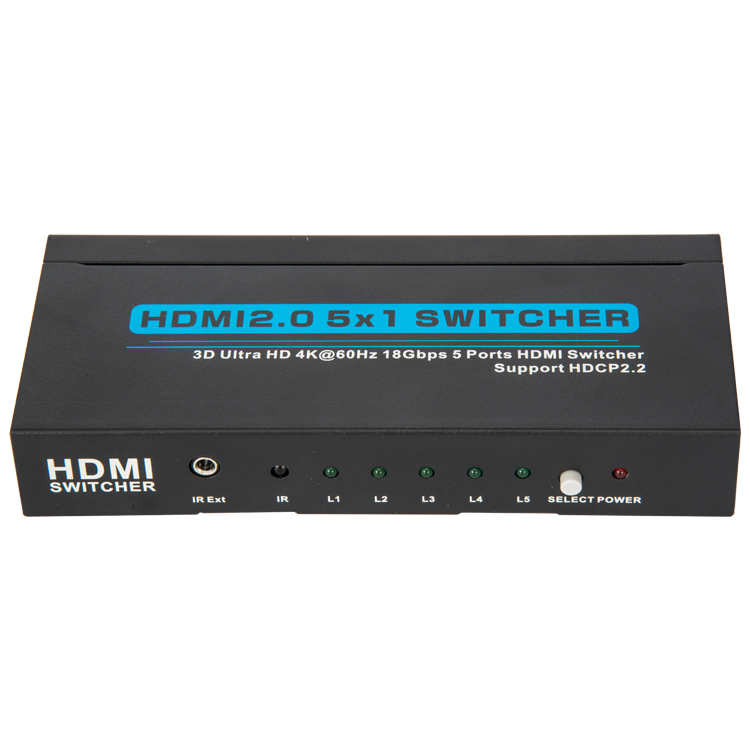

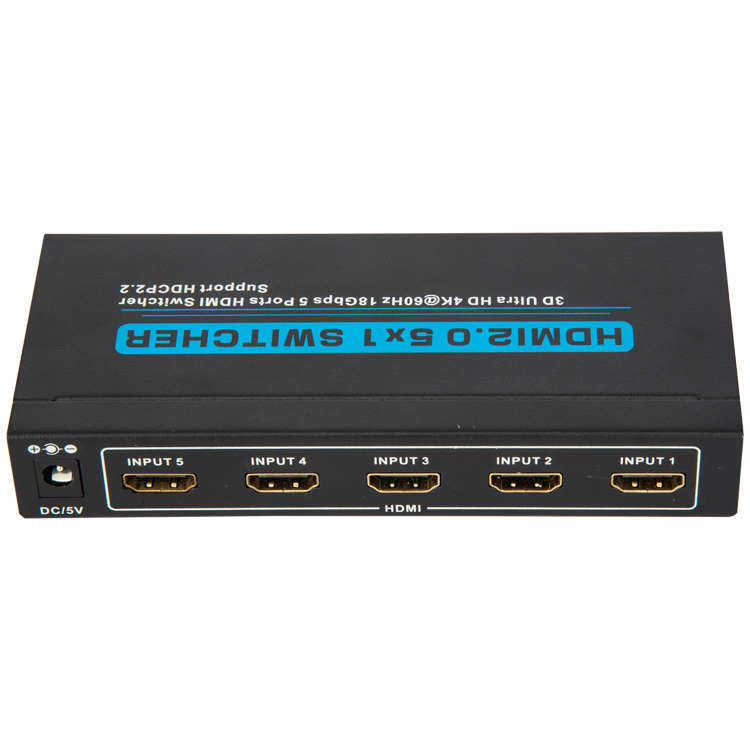

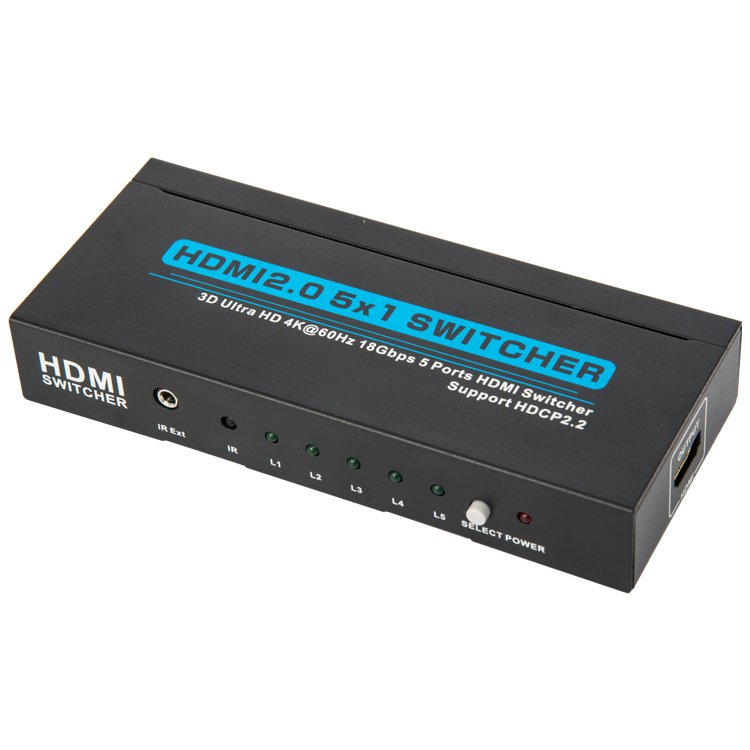

5x1 HDMI 2.0 Switch
Part No.: VT-305E
1.0 INTRODUCTION
This switch supports up to 5 HDMI sources and can be easily controlled by IR remote.
2.0 FEATURES
1. HDMI 2.0b HDCP 2.2 compliant, 18Gbps bandwidth.
2, Support resolution up to 4K@60Hz 4:4:4.
3, Audio format: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio .
4, Easily control with IR remote.
3.0 KIT ACCESSORY
HDMI 5x1 switcher-------------------------------------------1PCS
5V DC Power Adaptor---------------------------------------1PCS
Remote control-----------------------------------------------1PCS
IR Receiver Extension Cable -----------------------------1PCS
User Manual-------------------------------------------------1PCS

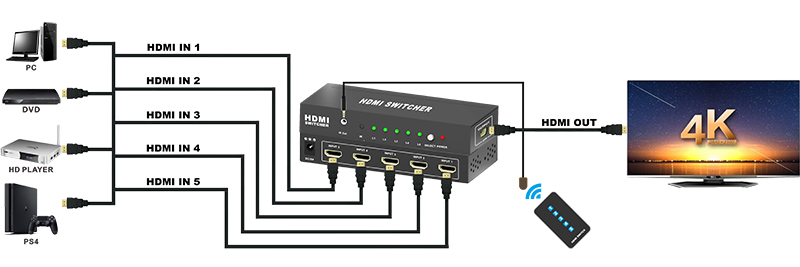

Diagram:
