VT-2022E 2x2 HDMI 2.0 Matrix

18Gbps HDMI2.0 HDCP2.2 compliant
Resolution up to 4K@60Hz 4:4:4 HDR
S/PDIF and Stereo audio extraction

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

2x2 HDMI 2.0 Matrix with audio extraction

Model No.: VT-2022E

1.0 Introduction:

VT-202E allows you to connect with 2 HDMI sources and 2 TVs. The device support S/PDIF and 3.5mm audio extraction.

2.0 Features:

1. Compliant with HDMI2.0, HDCP2.2 and 18Gbps bandwidth.

2. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.

3. Switch between 2 HDMI sources to 2 TVs.

4. Support S/PDIF and 3.5mm Stereo audio extraction.

5. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

6. Compatible with DVI by using HDMI to DVI adapter.

7. Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. 2x2 HDMI Matrix -------------------------------------------------1 Pcs

2. 5V DC Power Adaptor-------------------------------------------1 Pcs

3. IR Remote---------------------------------------------------------1 Pcs

4. User Manual-------------------------------------------------------1 Pcs

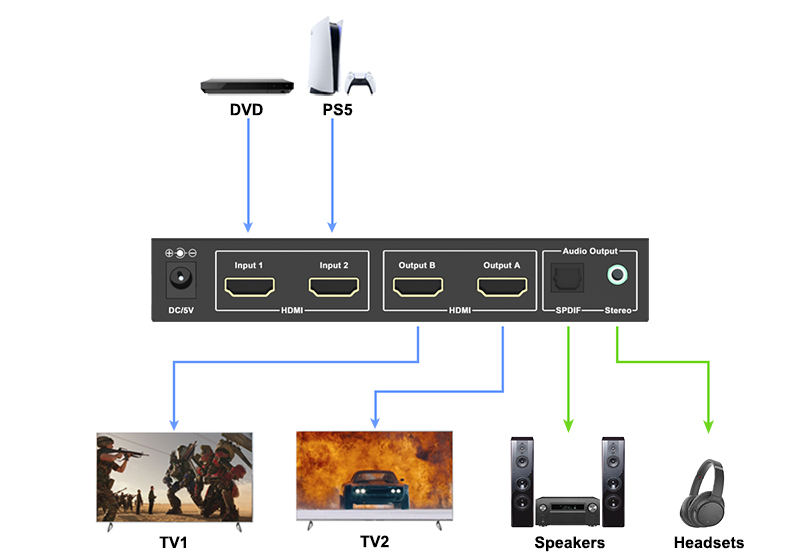

4.0 Application Diagram
