VT-2042E 4x2 HDMI 2.0 Matrix
18Gbps HDMI2.0 HDCP2.2 compliant
Resolution up to [email protected] 4:4:4 HDR
S/PDIF and Stereo audio extraction
Support ARC

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

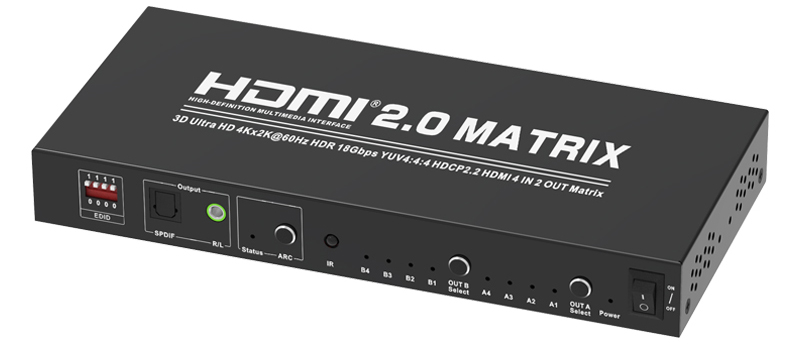

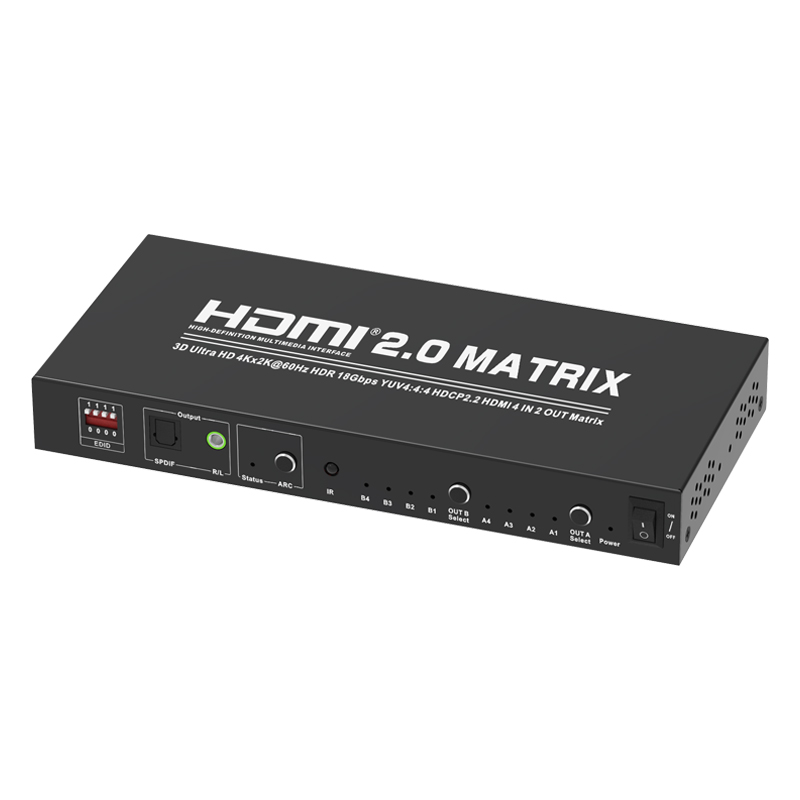

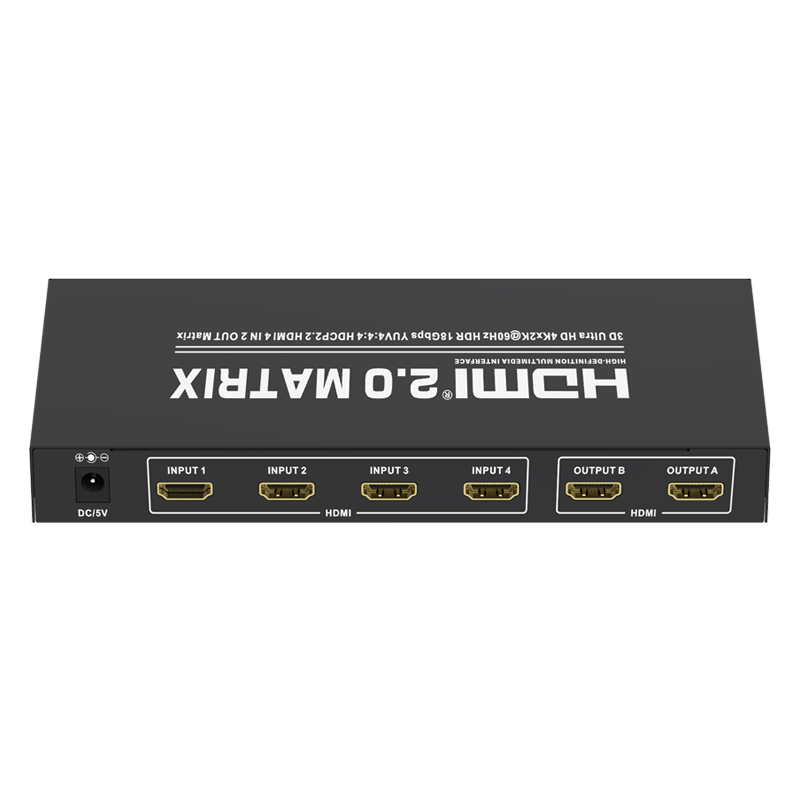

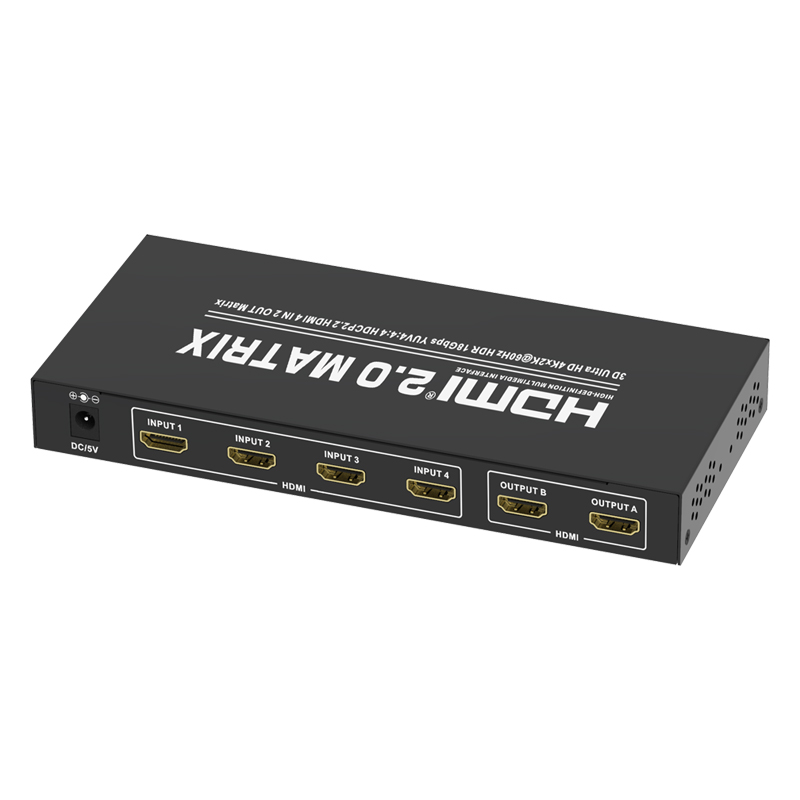

4x2 HDMI 2.0 Matrix with ARC and audio extraction

Model No.: VT-2042E

VT-2042E-01 web.jpg


1.0 Introduction:

VT-2042E allows you to connect with 4 HDMI sources and 2 TVs. The device support ARC and S/PDIF and 3.5mm audio extraction.


2.0 Features:

1. Compliant with HDMI2.0, HDCP2.2 and 18Gbps bandwidth.

2. Support video format up to [email protected] with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to [email protected] with 12bit YCBCR 4:4:4.

3. Switch between 4 HDMI sources to 2 TVs.

4. Support ARC and audio extraction to S/PDIF and 3.5mm Stereo audio.

5. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

6. Compatible with DVI by using HDMI to DVI adapter.

7. Metal casing design and overall shielding without signal interference.


3.0 Packaging accessories:

1. 4x2 HDMI Matrix -------------------------------------------------1 Pcs

2. 5V DC Power Adaptor-------------------------------------------1 Pcs

3. IR Remote---------------------------------------------------------1 Pcs

4. User Manual-------------------------------------------------------1 Pcs

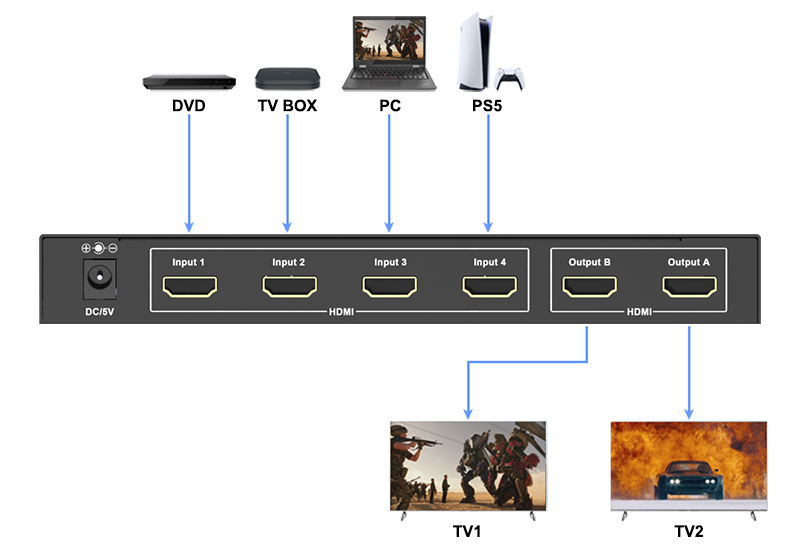

4.0 Application Diagram

VT-2042E Diagram 1.jpg
