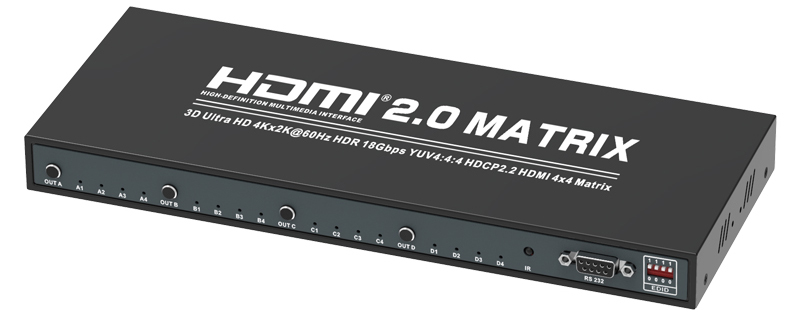

VT-2044E 4x4 HDMI 2.0 Matrix

18Gbps HDMI2.0 HDCP2.2 compliant
Resolution up to 4K@60Hz 4:4:4 HDR
Support EDID management
RS-232 control

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

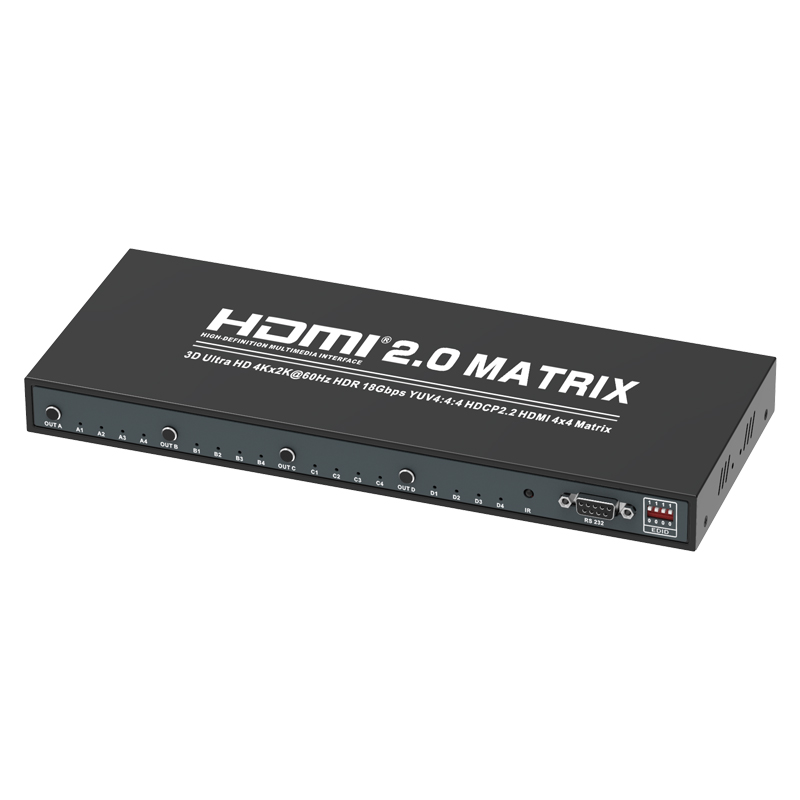

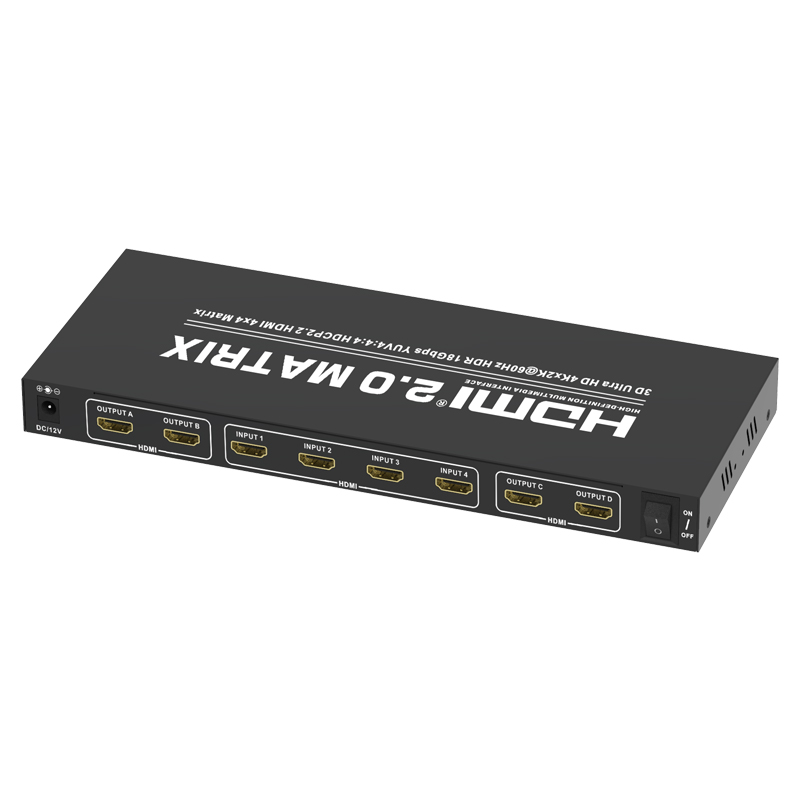

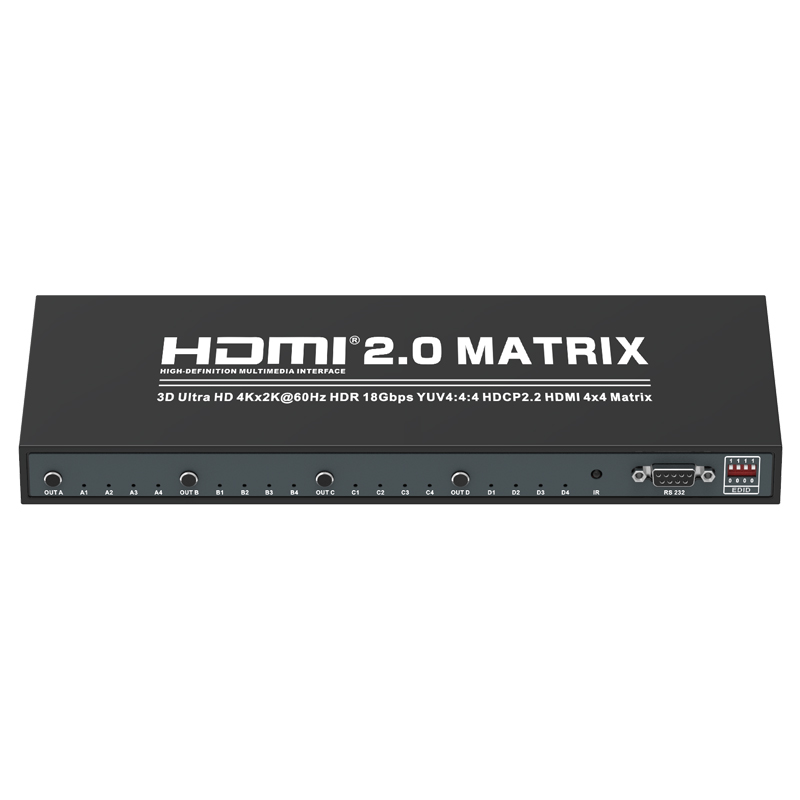

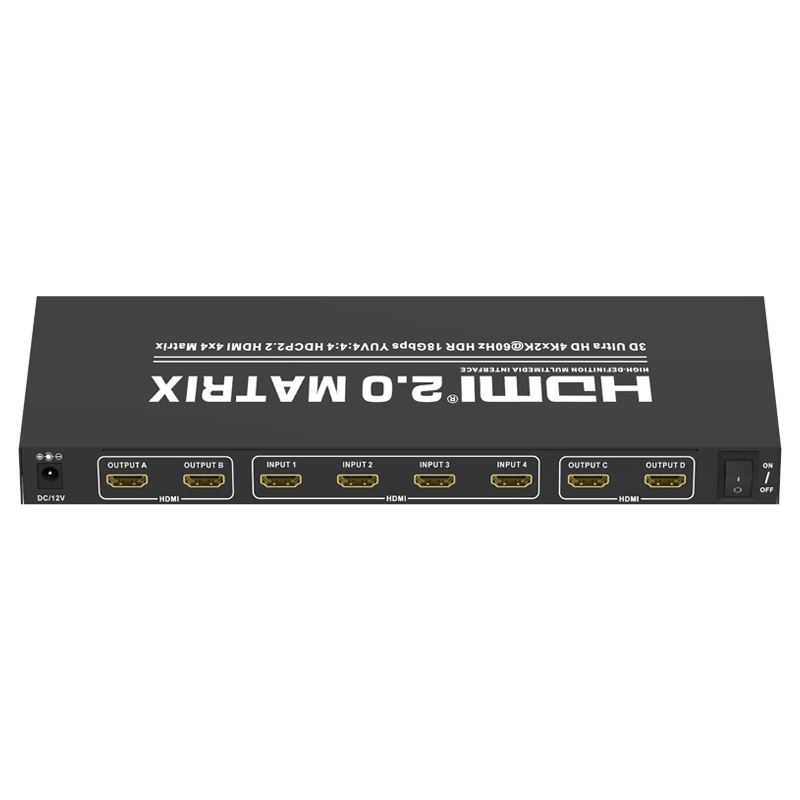

4x4 HDMI 2.0 Matrix 18Gbps bandwidth 4K@60Hz 4:4:4 HDR

Model No.: VT-2044E

1.0 Introduction:

VT-2044E allows you to connect with 4 HDMI sources and TVs. Easily switch the sources via remote and RS-232 commands. Also supports EDID management.

2.0 Features:

1. Compliant with HDMI2.0, HDCP2.2 and 18Gbps bandwidth.

2. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.

3. Switch between 4 HDMI sources to 4 TVs.

4. Control the matrix via remote and RS-232 commands.

5. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

6. Compatible with DVI by using HDMI to DVI adapter.

7. Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. 4x4 HDMI Matrix -------------------------------------------------1 Pcs

2. 12V DC Power Adaptor-------------------------------------------1 Pcs

3. IR Remote---------------------------------------------------------1 Pcs

4. User Manual-------------------------------------------------------1 Pcs

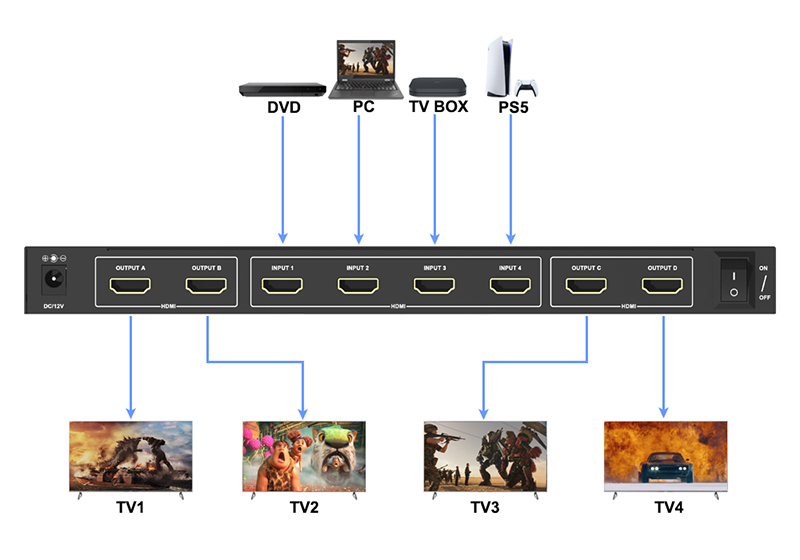

4.0 Application Diagram
