VT-51060E 4K HDMI KVM extender 60m

Resolution up to 4K@60Hz 4:4:4
USB KVM
EDID management
Over single Cat 60m

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

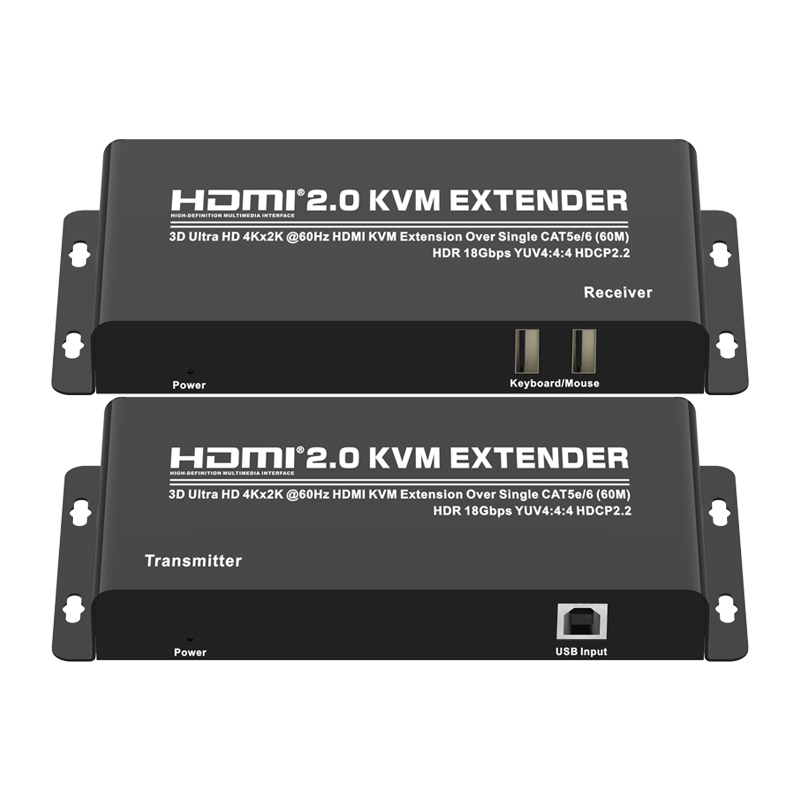

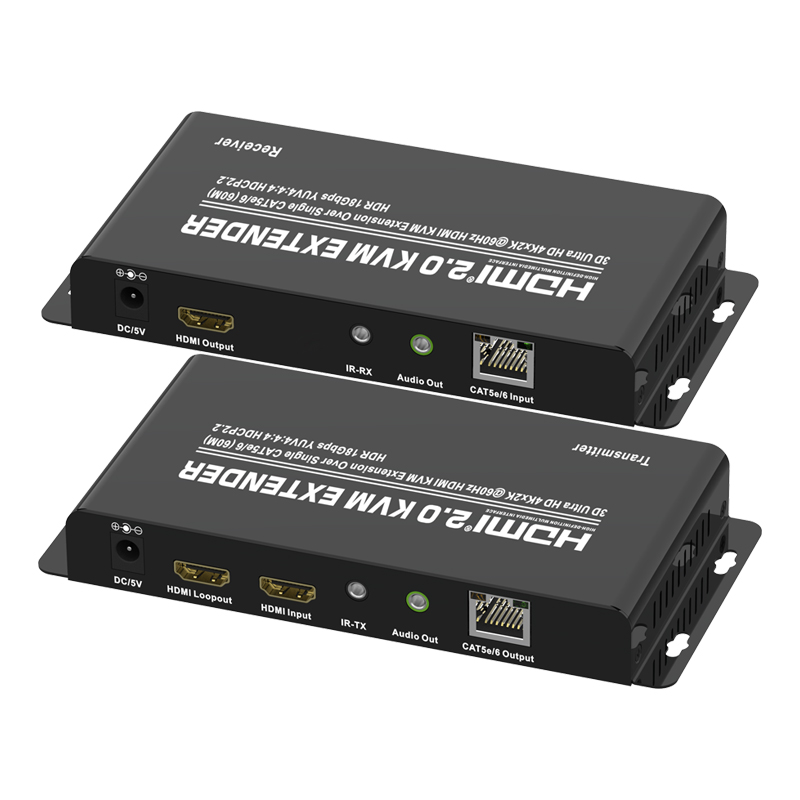

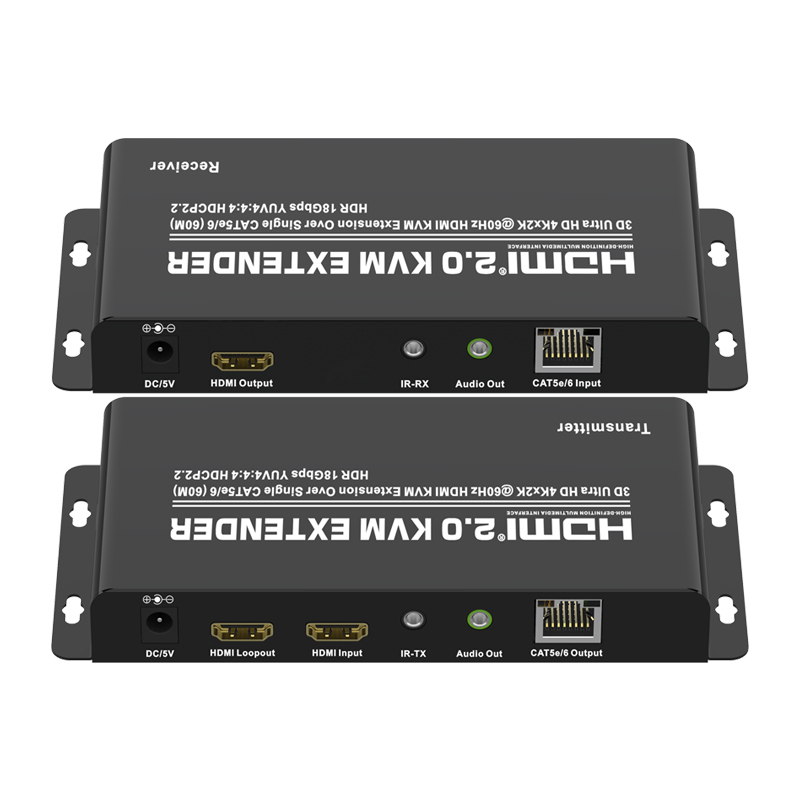

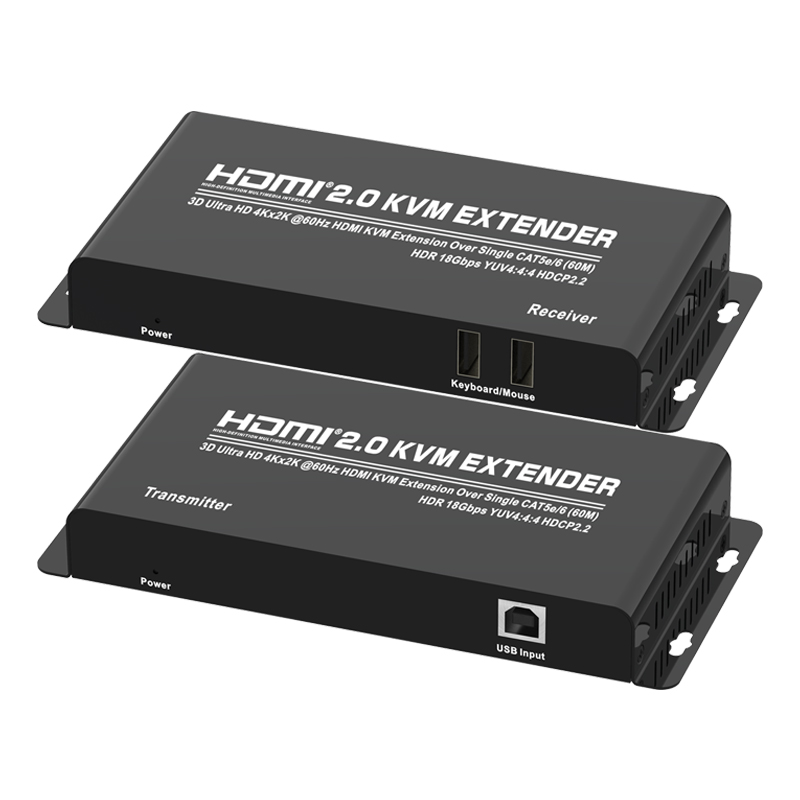

4K HDMI KVM extender 60m

Part No.: VT-51060E

1.0 Introduction

Use single cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost.

2.0 Features

1) Compliant with HDMI2.0b, HDCP2.2, 18Gbps bandwidth.

2) Signal transmission: Cat5e or Cat-6(recommended) cables up to 60 meters.

3) Input/Output resolution: 480ip,576ip,720p,1080ip,4Kx2K@60Hz.

4) Wide band IR: 20KHz-60KHz.

5) Audio extraction on TX and RX.

3.0 Packaging Accessories

1. HDMI Transmitter -------------------1PCS

2. HDMI Receiver ----------------------1PCS

3. IR Transmitter------------------------1PCS

4. IR Receiver---------------------------1PCS

5. Power Supply------------------------2PCS

6. USB Cable----------------------------1PCS

7. User Manual--------------------------1PCS

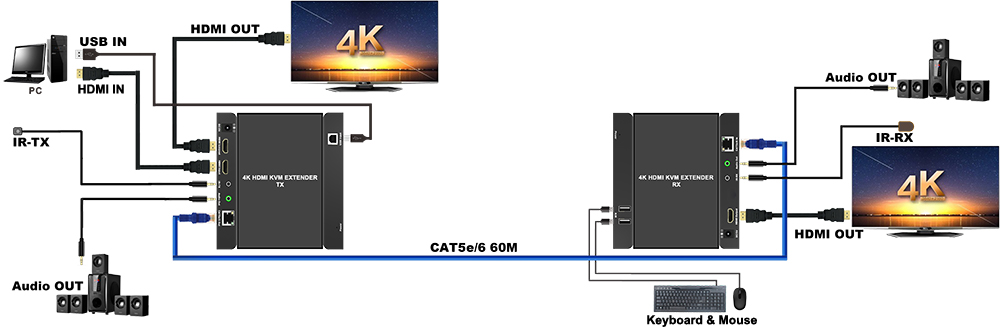

4.0 Diagram
