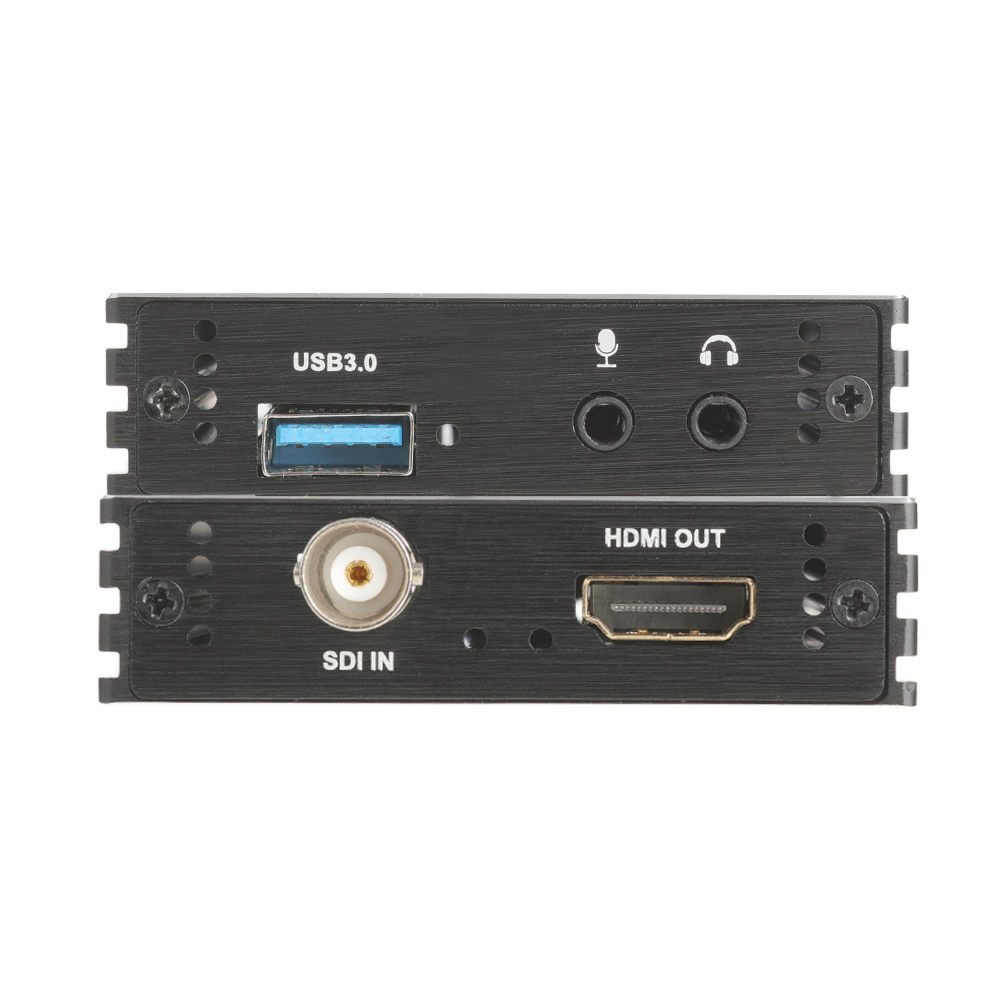

VT-SD60 SDI video capture USB 3.0
SDI input
[email protected] output
USB 3.0 compliant
3.5mm audio extraction
Mic input

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

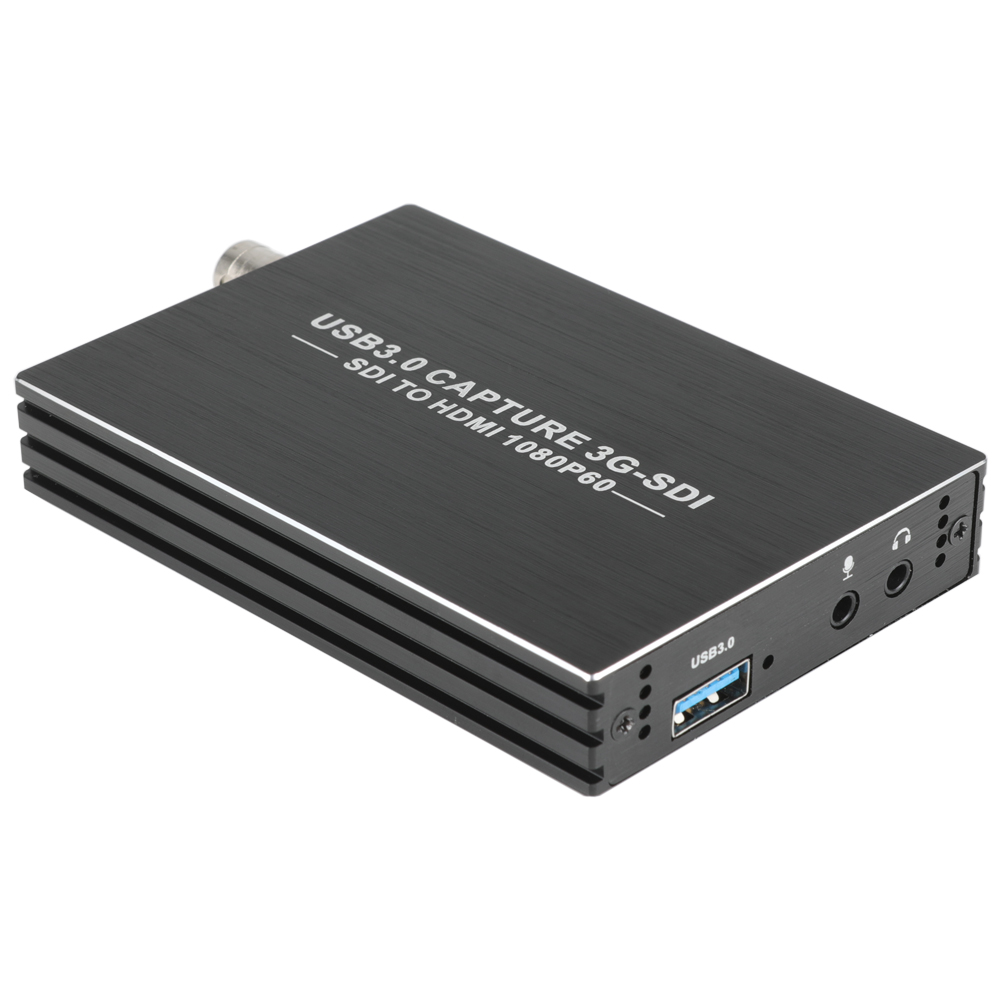

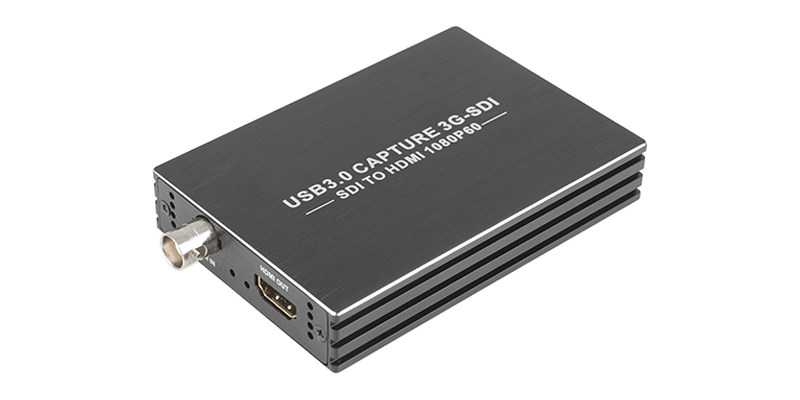

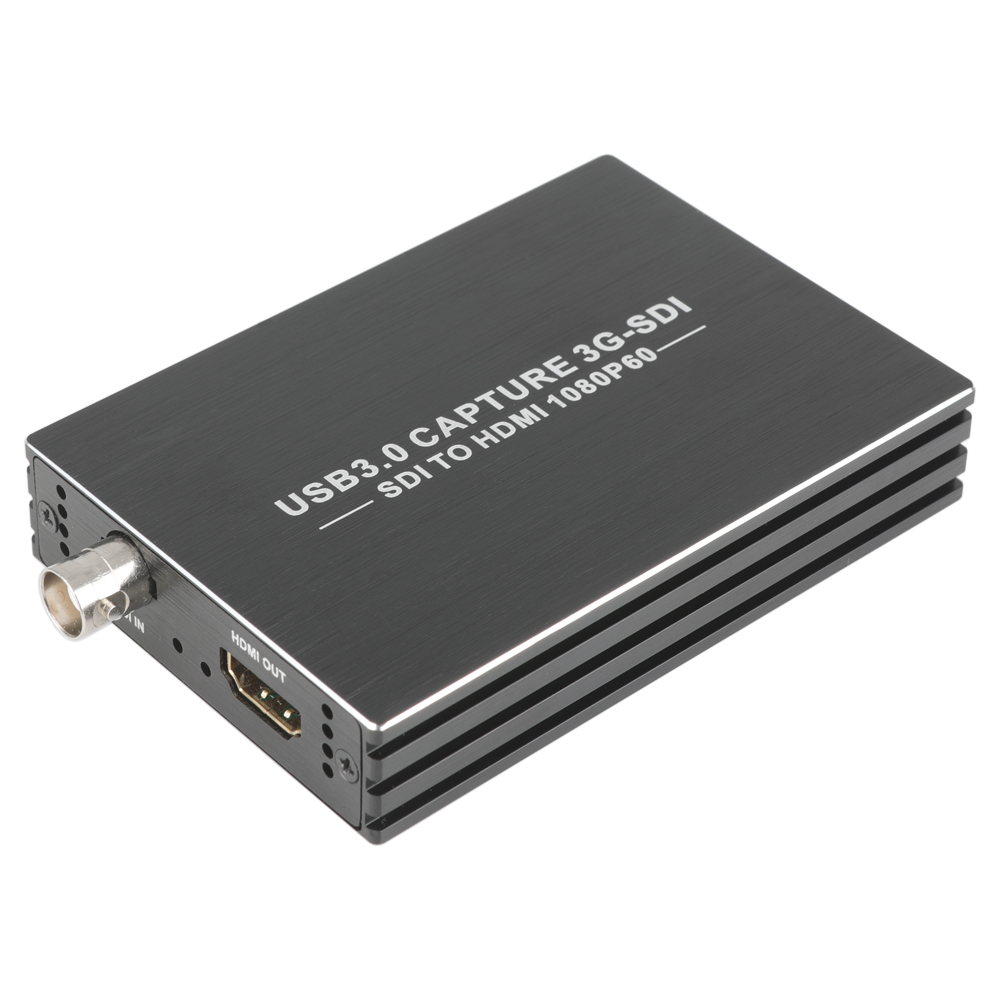

1080P SDI USB 3.0 Capture

Part No.: VT-SD60

VT-SD60 001.jpg



1.0 DESCRIPTION

This 3G-SDI capture card, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one 3G-SDI input ,output HDMI 1080p and USB 1080p60 signals. The SDI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.


2.0 FEATURES

 It doesn't need to install a driver, and it is truly PnP.

 It is compatible with Windows, Linux, OS X operating systems。

 USB3.0 compliant, 300-350MB/s bandwidth and backward compatible with USB 2.0

 It can capture one single channel SDI video signals.

 It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.

 Support SD-SDI/HD-SDI/3G-SDI input.

 Support SDI TO HDMI 1080p60(HDMI loop output 1080p60).

 Support MIC input and audio output.



3.0 PACKAGING ACCESSORIES

SDI USB3.0 Capture---------------------------------1Pcs

USB3.0 Cable---------------------------------------1Pcs

HDMI Cable-----------------------------------------1Pcs

User manual----------------------------------------1pcs

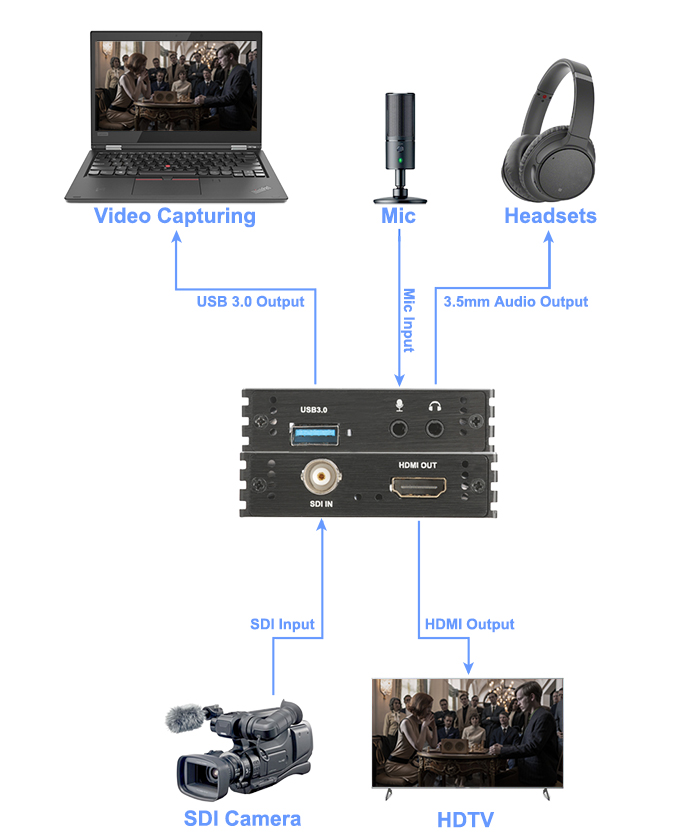

4.0 Application diagram

VT-SD60 Diagram.jpg
