VT-621E HDMI 2.0 Audio Extractor
HDMI 2.0 HDCP 2.2 compliant
18Gbps [email protected] 4:4:4
S/PDIF, Coaxial and 3.5mm stereo output

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)


HDMI 2.0 Audio Extractor

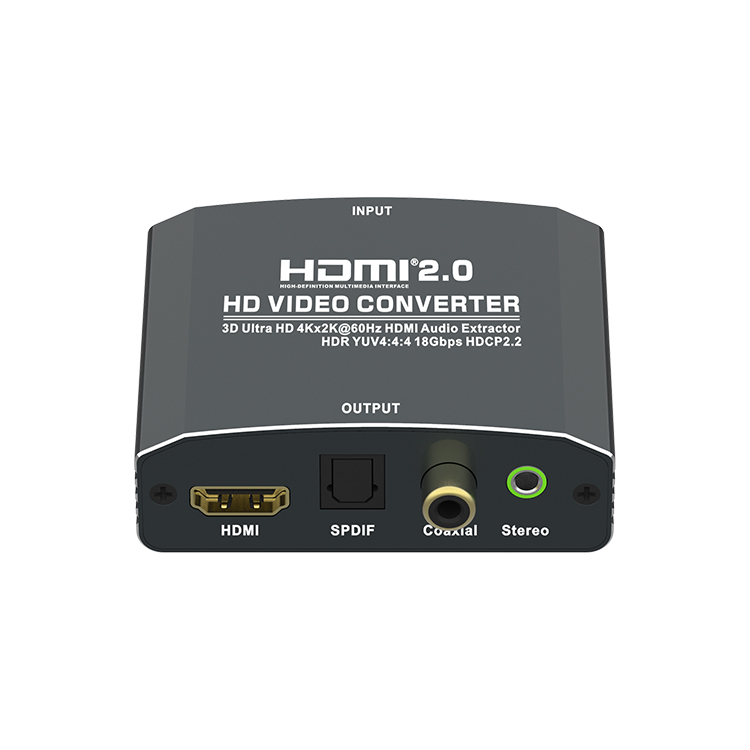

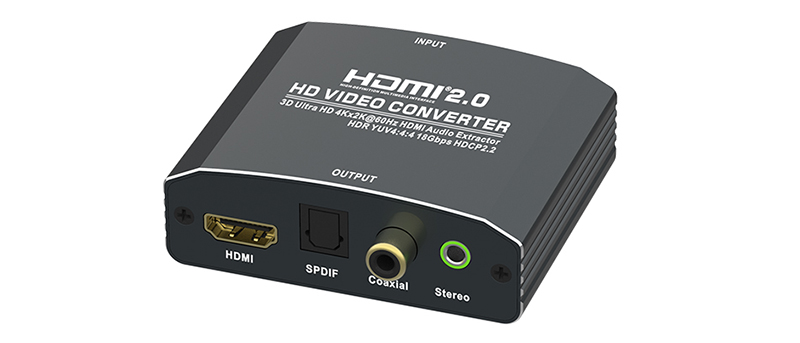

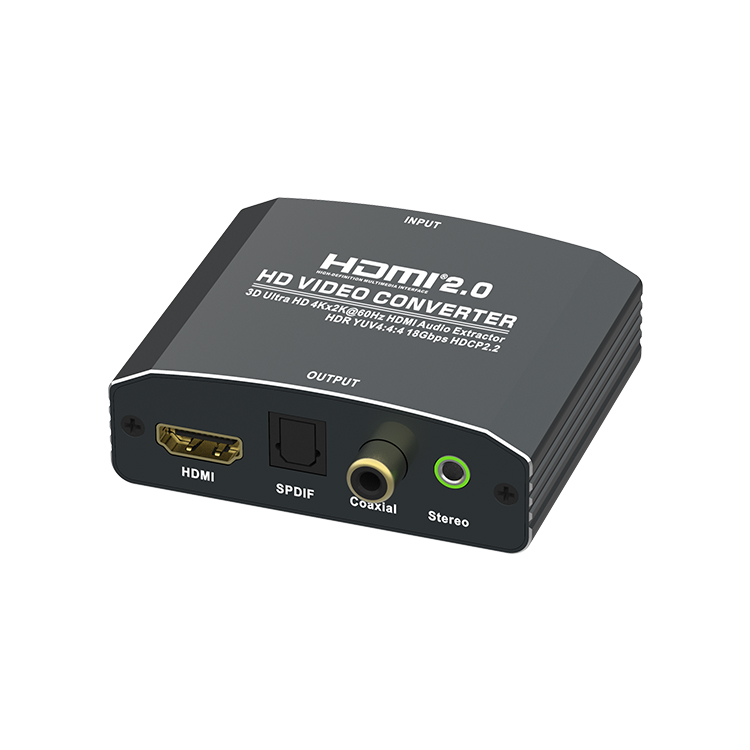

Part No.: VT-621E

VT-621E 03.jpg

1.0 DESCRIPTION

The converter allows the HD Source connected to single HD Display and adds extra one 3.5 Stereo and SPDIF/Coaxial audio out port.

It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


2.0 FEATURES

1.Plug and play, Installs in minutes;

2.Support the HDCP2.2 protocol, Support for HDMI2.0;

3.Support HDR 18Gbps YUV4:4:4;

4.One HDMI input converted to one HDMI+ Audio (SPDIF+3.5(Stereo)+Coaxial) output;

5.Input/Output Resolution: up to 4Kx2K(60Hz);

6.HDMI to achieve the synchronization of audio signal separation;

7.Support select 2.0CH/5.1CH/by pass audio mode options.



3.0 PACKAGING ACCESSORIES

HDMI audio extractor-------------------------------------1Pcs

5V DC power supply---------------------------------------1Pcs

User manual----------------------------------------1Pcs


4.0 Application diagram

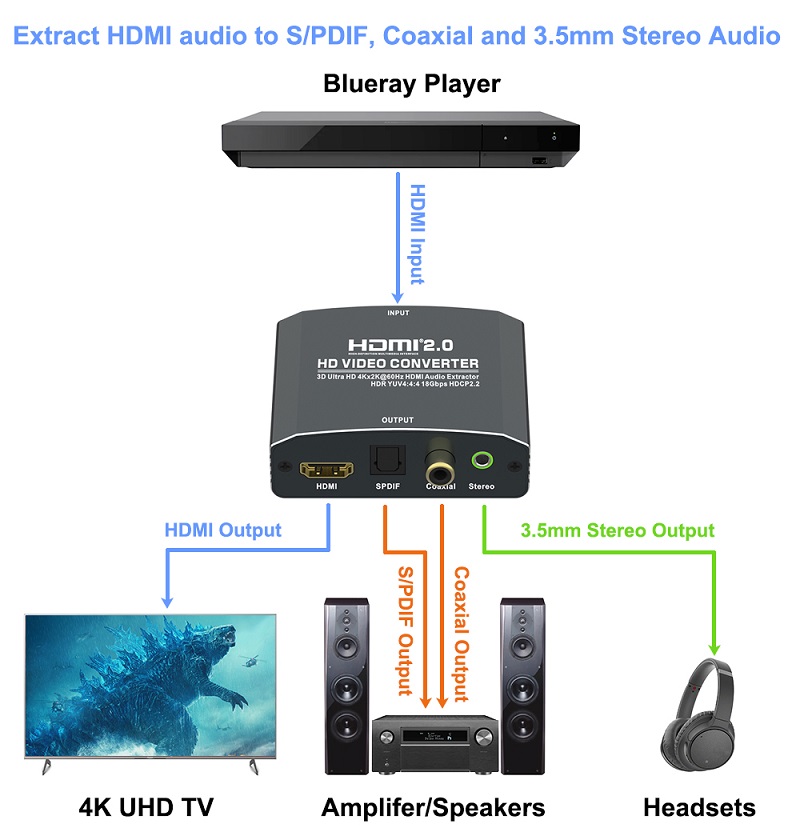

Application 1: Audio Extraction

audio extraction.jpg

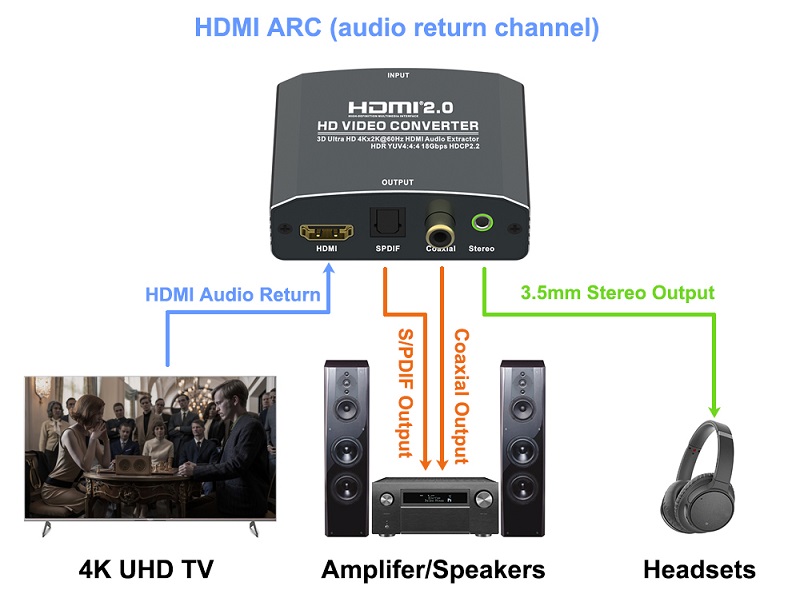

Application 2: Audio Return (ARC)
