4K 3x3 Video Wall Controller

3x3 video wall controller
HDMI 2.0b, HDCP 2.2 compliant
Support input up to 4K@50/60Hz
Output resolution up to 1080P@50/60Hz

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

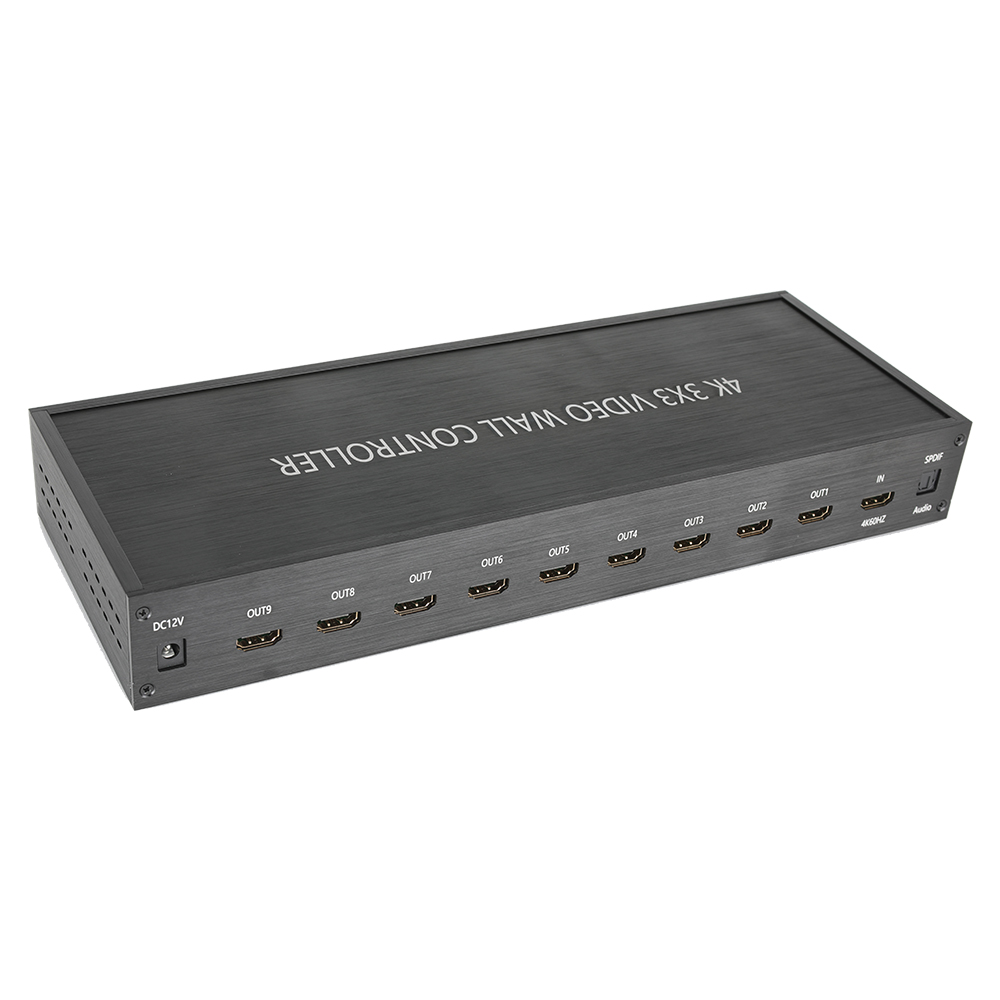

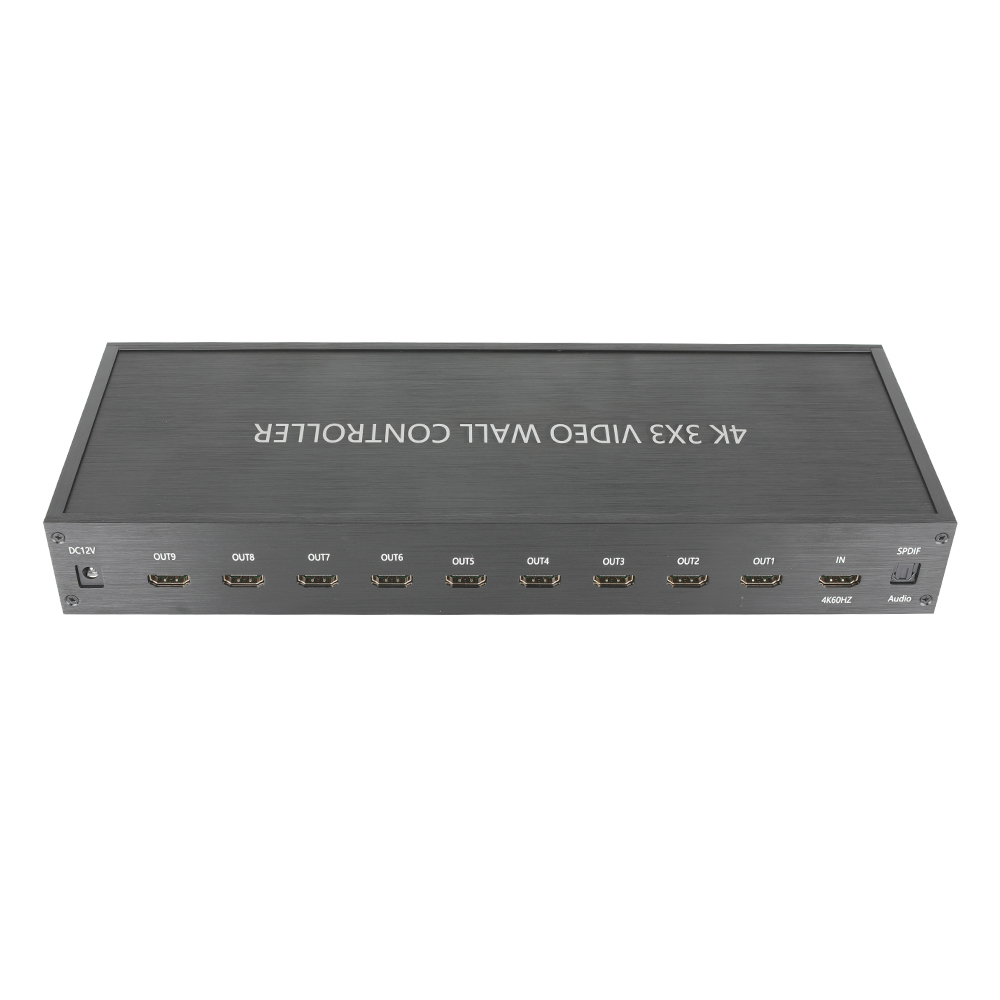

4K 3x3 HDMI video wall controller

Part No.: VT-VW20

1.0 INTRODUCTION

VT-VW20 supportS 1-way HDMI input and 9 HDMI output, the main function is to divide a complete HDMI UHD image signal up to 9 displays.

2.0 FEATURES

1, Compact 3x3 video wall controller, also supports 2x3, 2x4, 4x1and other modes.

2, HDMI input supports up to 4K@50/60Hz.

3, Output resolution up to 1920x1080P@50/60Hz.

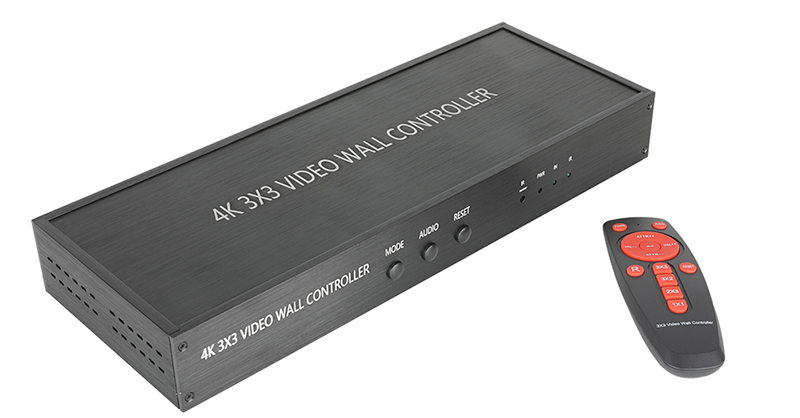

3, Plug and play, no driver required, set up via IR remote or panel button.

4, Perfect for home entertainment, sports bar and restaurant applications.

5, Portable design with low power consumption.

3.0 3x3 video wall demo

https://youtu.be/ZQOeYtW3wvc

4.0 Application diagram
