AV to HDMI converter

AV to HDMI converter
720P/1080P resolution
Digital coaxial and analog stereo audio

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

AV to HDMI converter 720P/1080P

Part No.: VT-8A

1.0 Introduction

AV+HDMI TO HDMI converter can convert 480I(NTSC)/576I(PAL) format signal to 720P/1080P HDMI signal output, also it can connect the high definition HDMI input interface, Easy connect the DVD, set-top box, HD player, Game Console (PS2，PS3，PSP,WII,XBOX360 etc).

2.0 Features

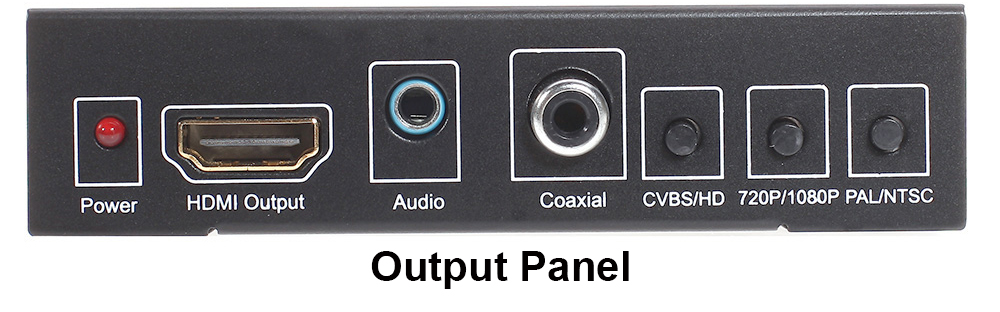

1).HDMI output interface: connect with high definition TV or high definition projector

HDMI output format:720P@50/60Hz, 1080P@50/60HZ

Audio output format: Digital coaxial audio, analog stereo audio

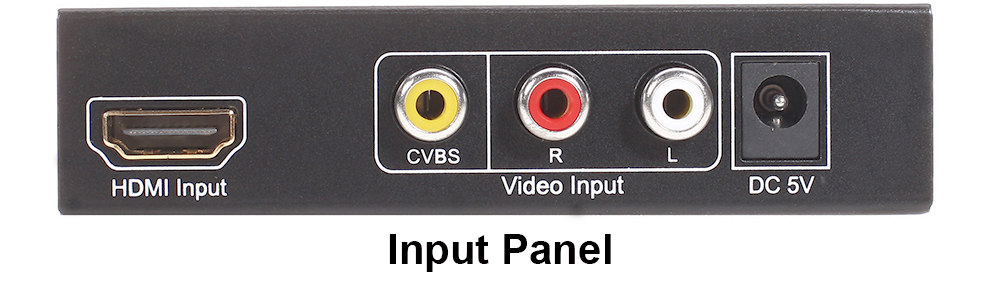

2). CVBS input interface: DVD, set top box, PS2, WII, NGC and other players.

CVBS input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N

3). HDMI input format: 480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz

Compatible with several DVI format: 800X600, 1024X768,1280X1024, 1360X768, 1680X1050, 1920X1080 etc.

4). 3.5mm audio interface: Connect with analog audio amplifier or headphones input interface

5). Digital coaxial output: Connect with digital audio amplifier.

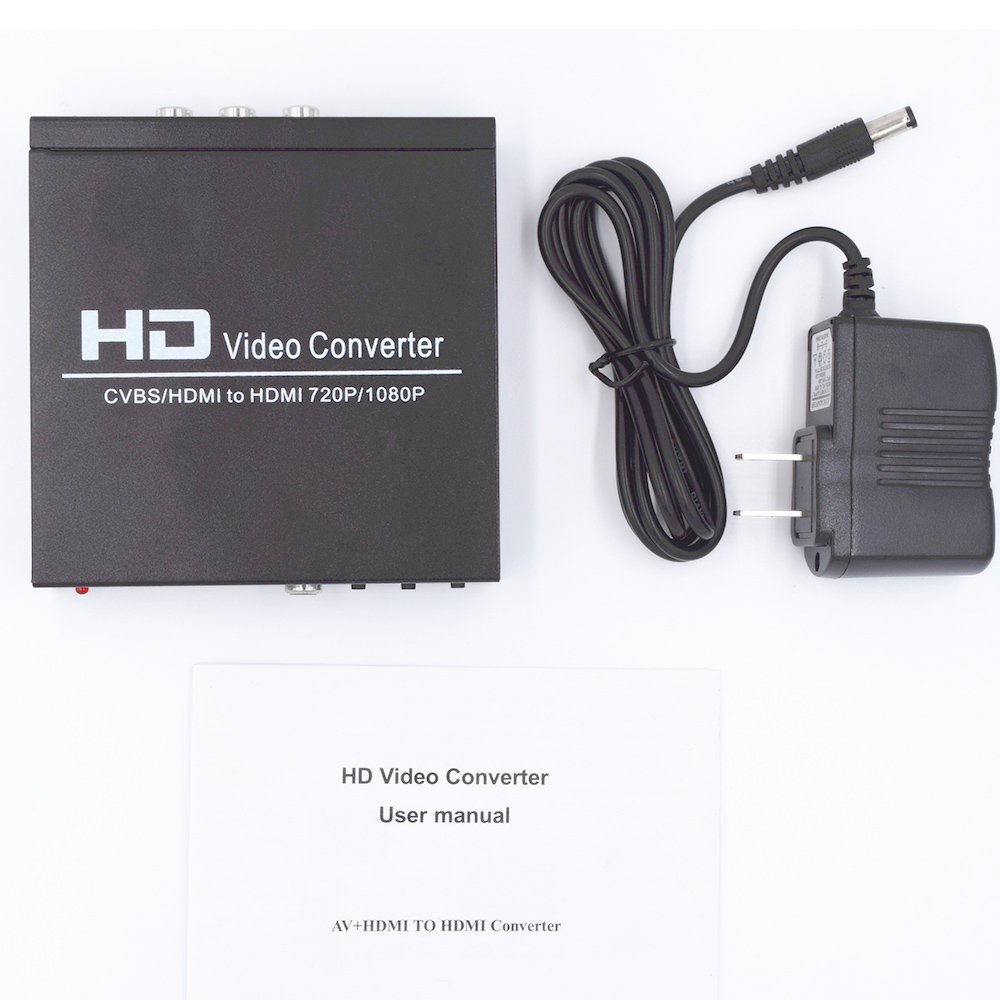

3.0 Packaging Accessories

1. AV to HDMI converter -------------------1PCS

2. Power supply------------------------------2PCS

3. User manual-------------------------------1PCS

4.0 Diagram
