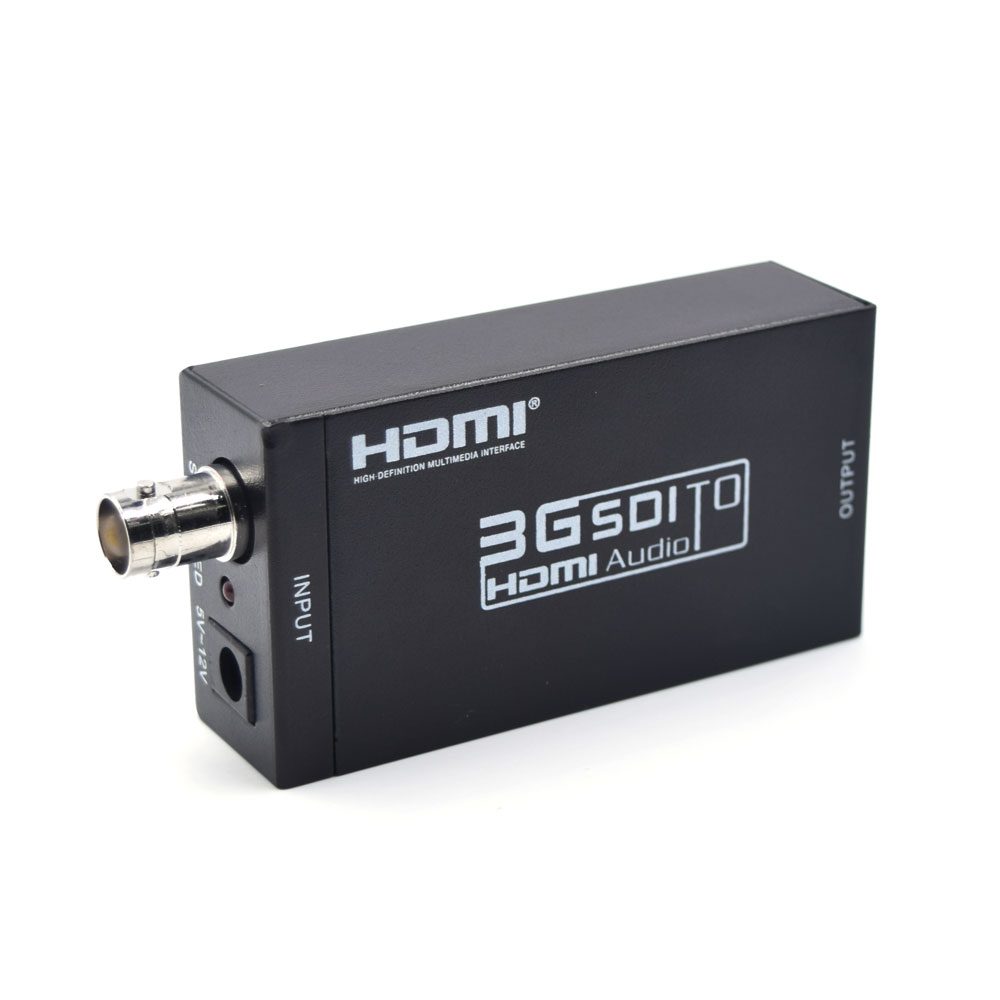

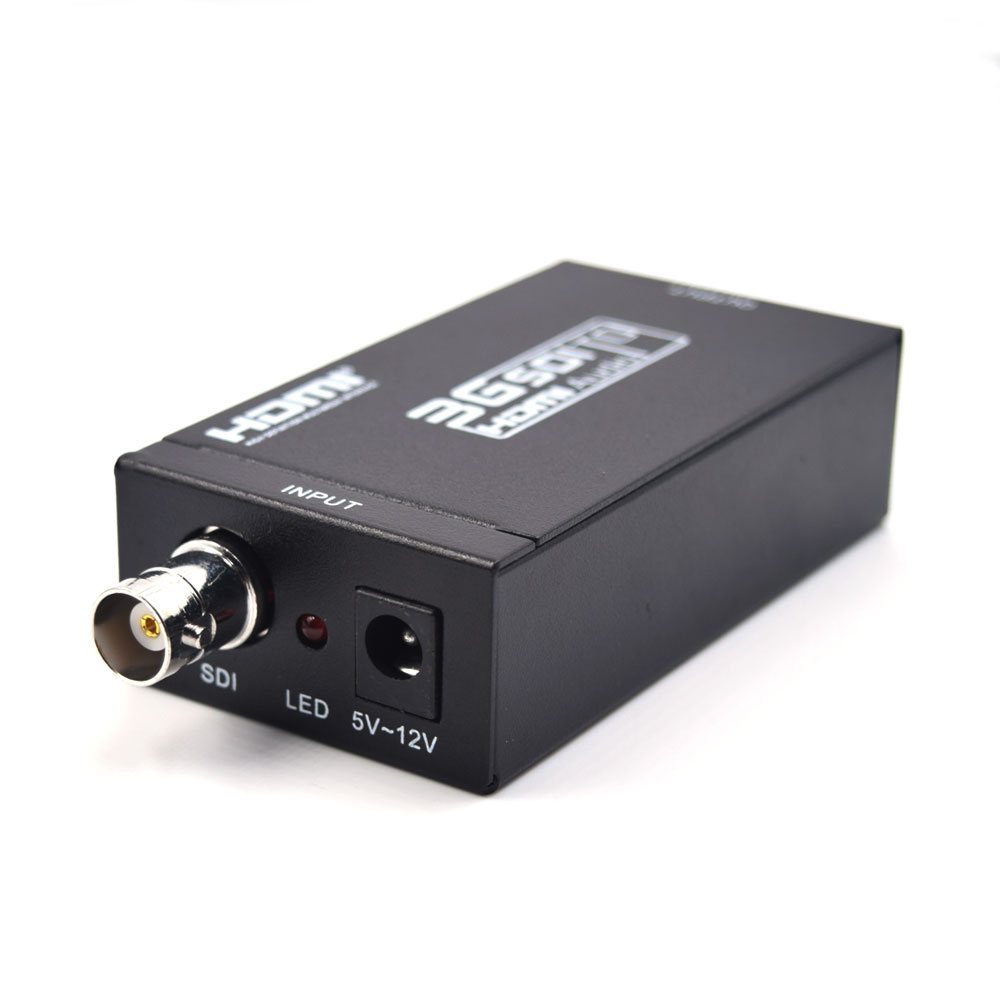

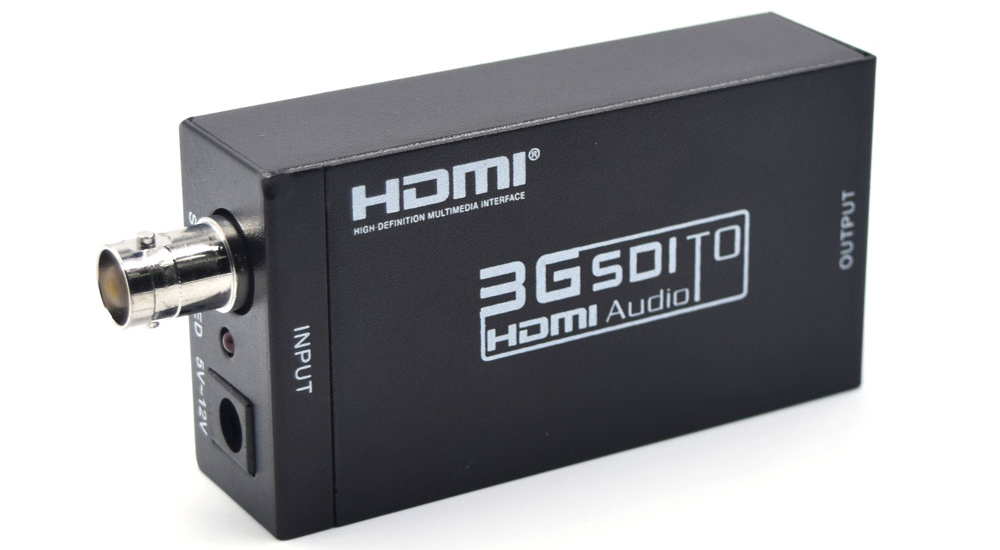

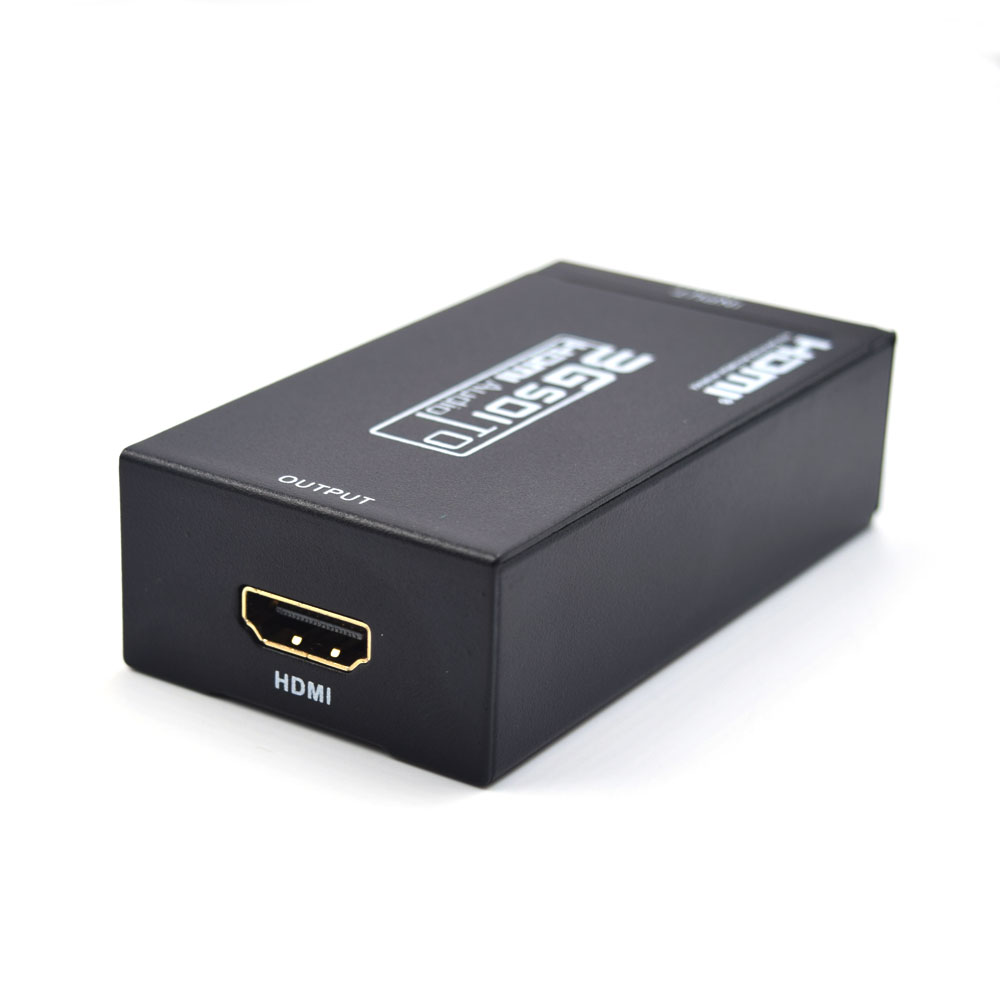

1080P SDI to HDMI converter

Part No.: VT-SDH

1.0 Introduction

The MINI SDI to HDMI Converter allows SDI signals to HDMI display with bandwidth 2.970 Gbps to give you high resolution signal without any loss.

2.0 Features

1, Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s

2, Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C

3, Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

4, Connect with other units to extend your signal over long distances

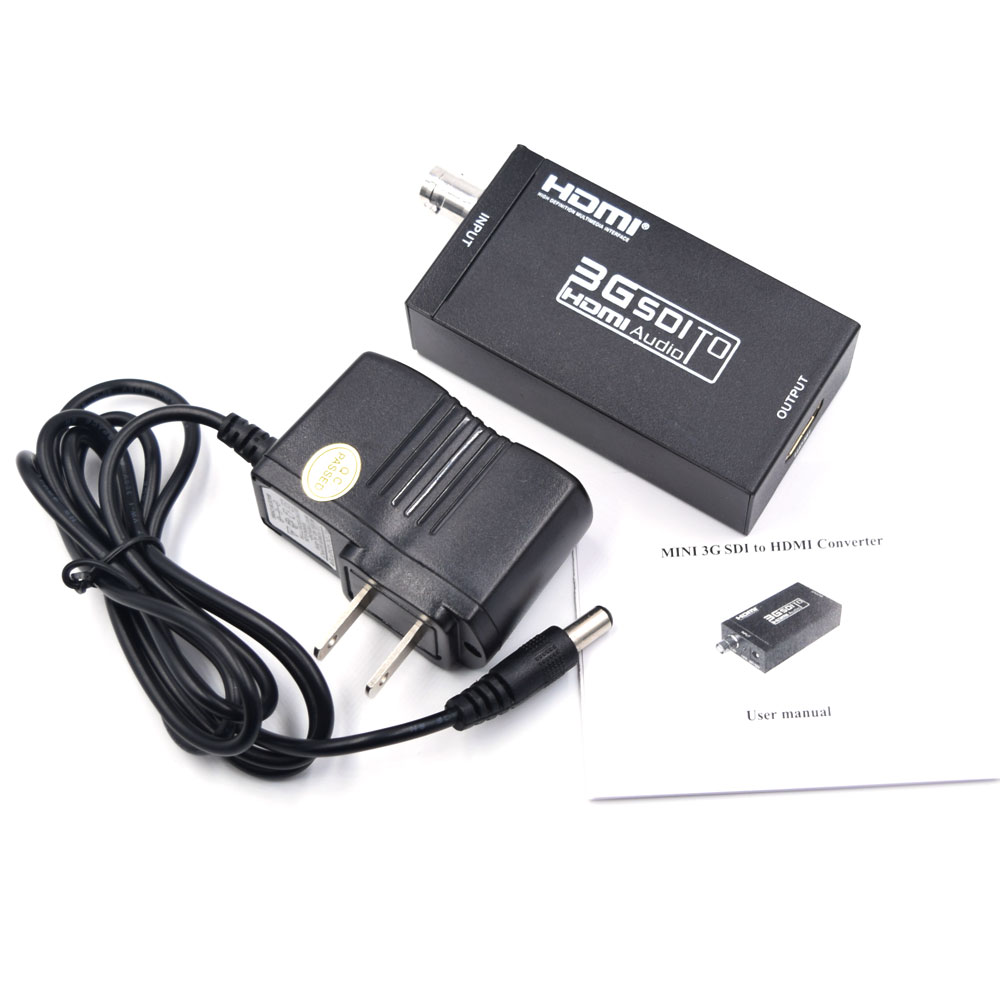

3.0 Package

(1) SDI to HDMI converter -------------------------------------- 1PCS

(2)5V 1A DC Power Supply-------------------------------------- 1PCS

(3)Operation Manual --------------------------------------------1PCS

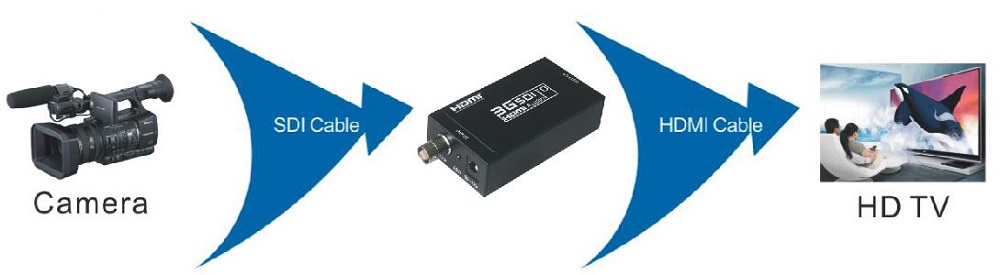

5.0 Application diagram
