1080P HDMI to SDI converter

Part No.: VT-HSD

VT-HSD Web.jpg

1.0 Introduction

The MINI HDMI to SDI Converter allows HDMI signals to SDI display with bandwidth 2.970 Gbps to give you high resolution signal without any loss.

2.0 Features

1.SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

2, Supports HDMI input timings:  720p@50/59.94/60, 1080i@50/59.94/60, [email protected]/24/25/29.97/30/50/59.94/60.

3, Converts HDMI signal to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s), 720P/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s), 1080P to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

4, Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

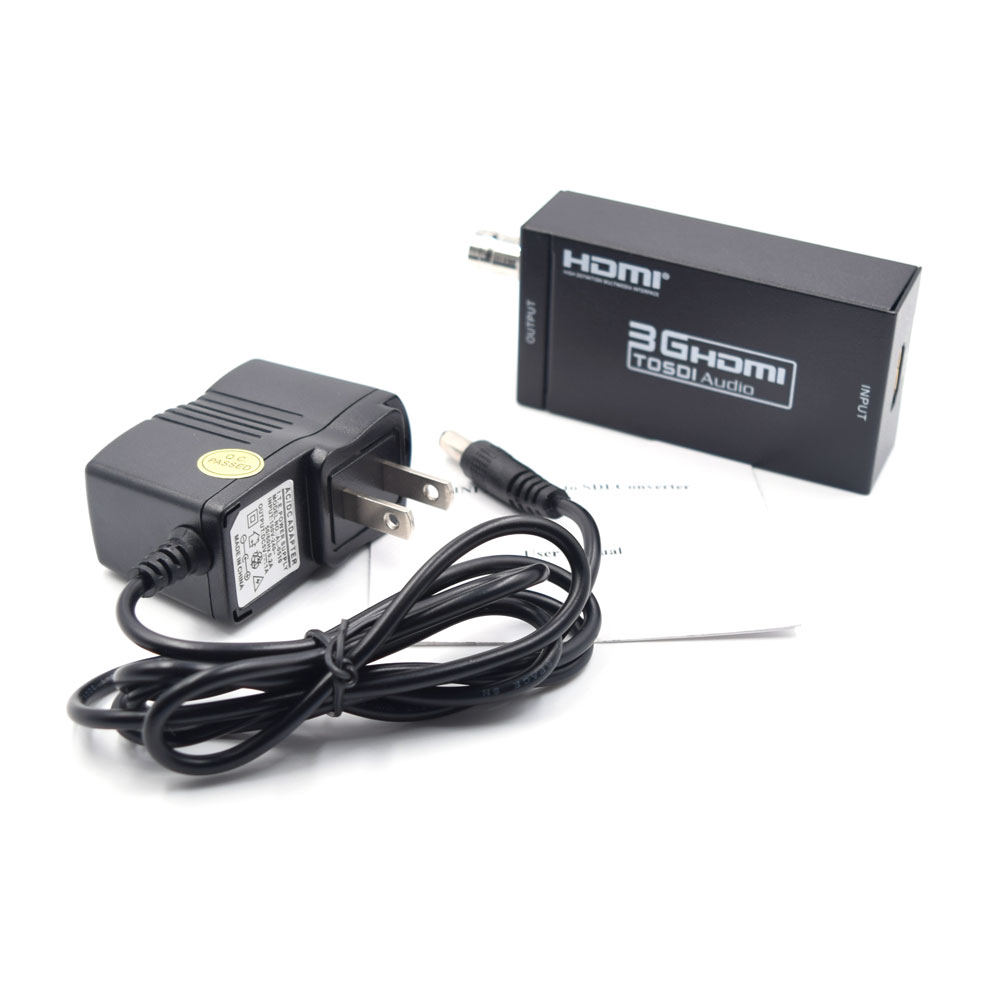

3.0 Package

(1) HDMI to SDI converter -------------------------------------- 1PCS

(2)5V 1A DC Power Supply-------------------------------------- 1PCS

(3)Operation Manual --------------------------------------------1PCS

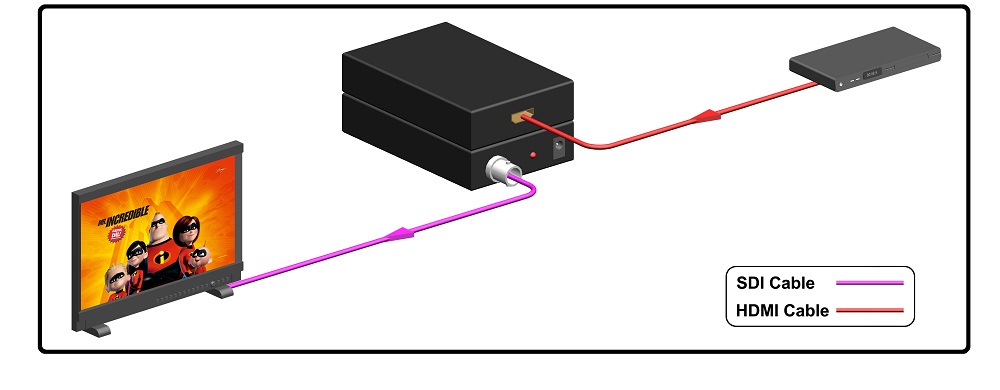

5.0 Application diagram

VT-HSD diagram.jpg
