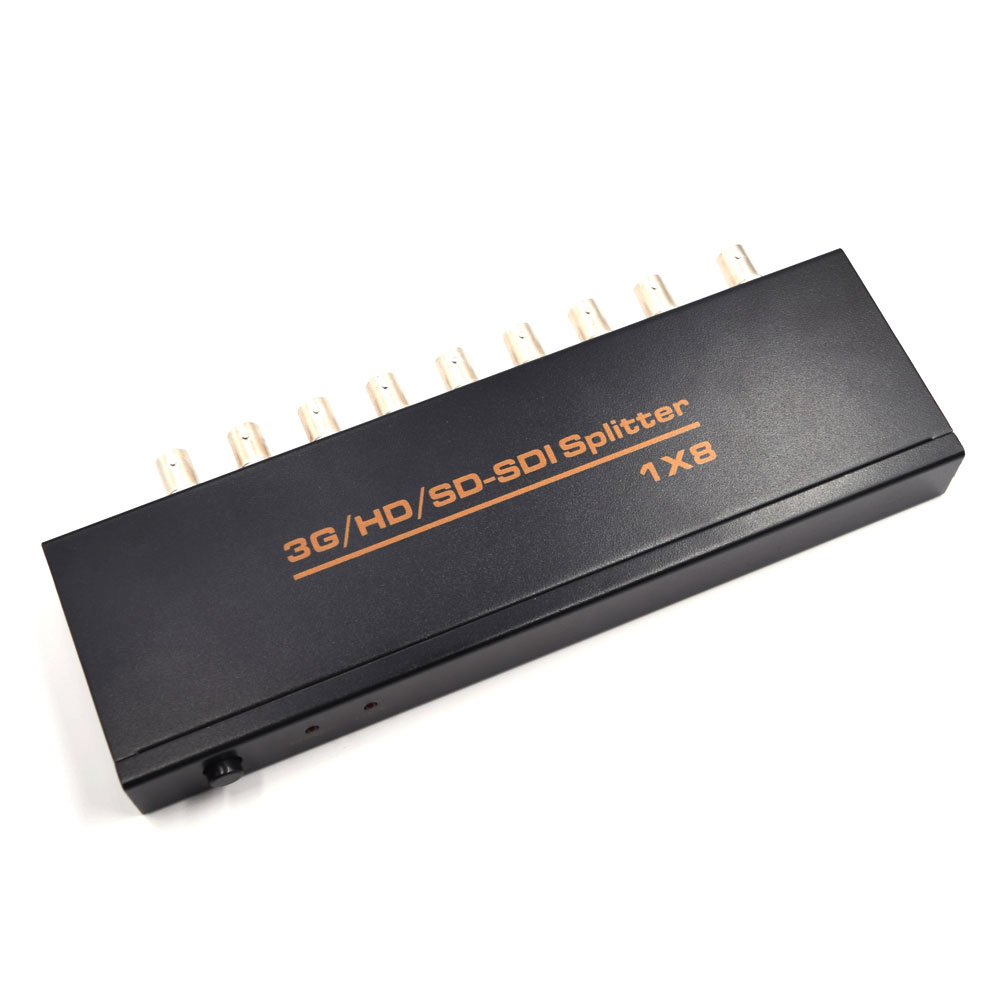

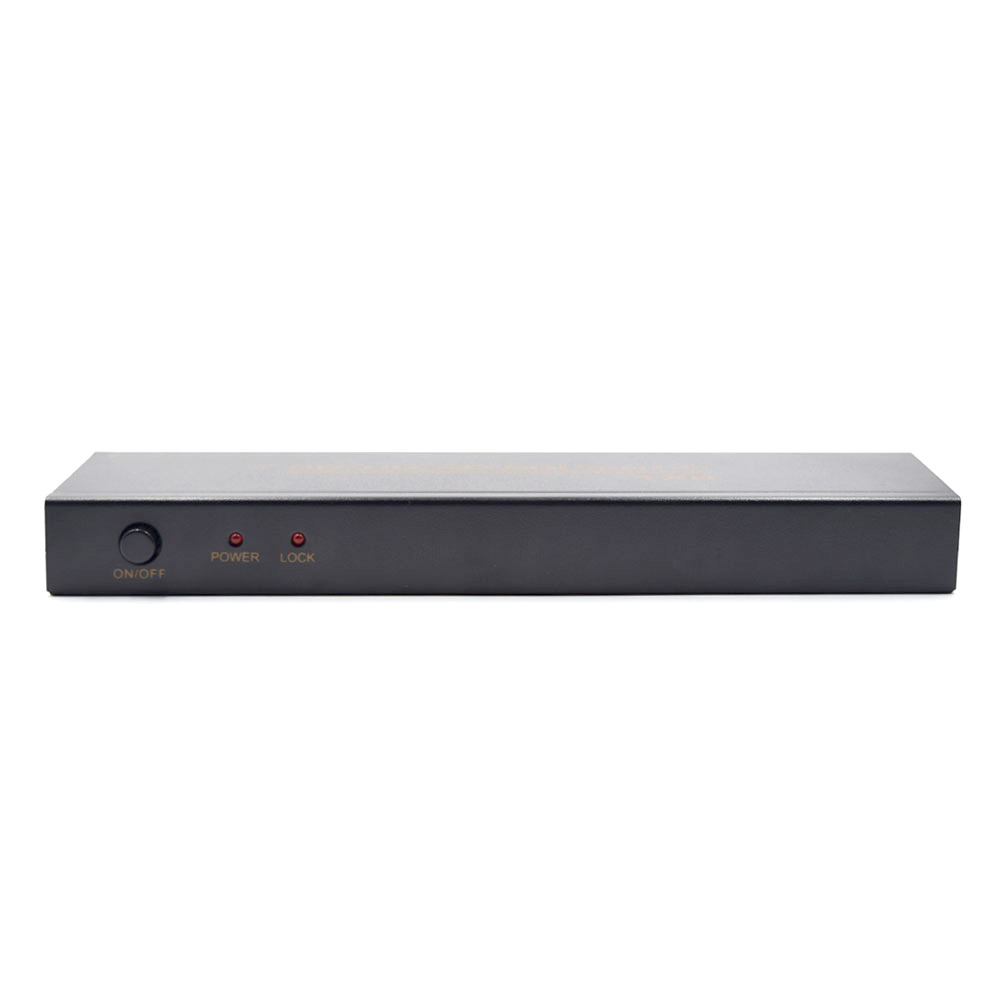

1x8 SDI splitter
Model No. SDT-108
Resolution up to 1080P@60Hz
Support SD-SDI, HD-SDI, 3G-SDI

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)



1x8-SDI-splitter

Part No.: SDT-108




1.0 Introduction

The 1x8 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 4 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.


2.0 Features

1.1 SDI input signal split to 8 SDI devices.

2.Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

3.Built-in cable equilibrium, clock recovery and drive.

4.Supports resolutions up to 1920x1080@60Hz.

5.Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.

6.Supports 5-12V wide voltage input.


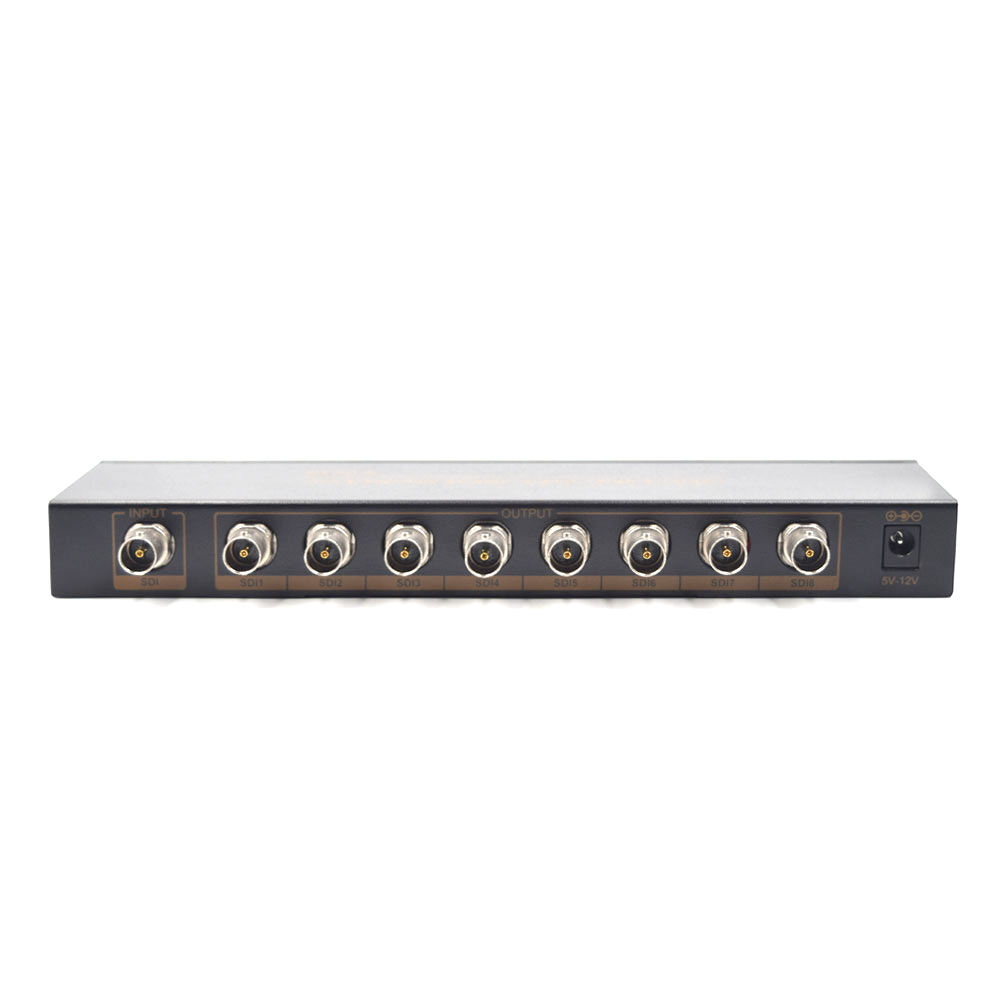

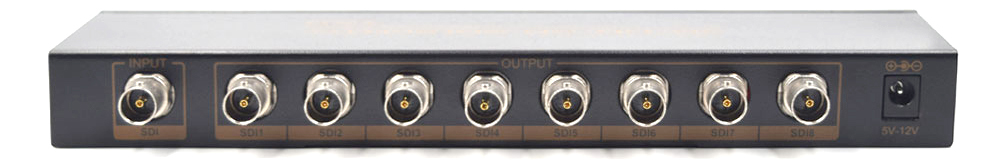

3.0 Specifications

Frequency Bandwidth------------------------------------------------------3Gbps

SDI Splitter Input Port-----------------------------------------------------1 x BNC Female input port

SDI Splitter Output Ports--------------------------------------------------8 x BNC Female output ports

Power Supply--------------------------------------------------------------DC 5V 1A

ESD Protection Human Body Model--------------------------------------± 8kV (air-gap discharge) ± 4kV (contact discharge)

Dimensions (mm)----------------------------------------------------------229 (L) X 90 (W) X 25 (H)

Weight---------------------------------------------------------------------350g

Operating Temperature---------------------------------------------------0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature------------------------------------------------------20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity----------------------------------------------------------20 ~ 90% RH (Non-condensing)

Power Consumption (Max)------------------------------------------------1.5W


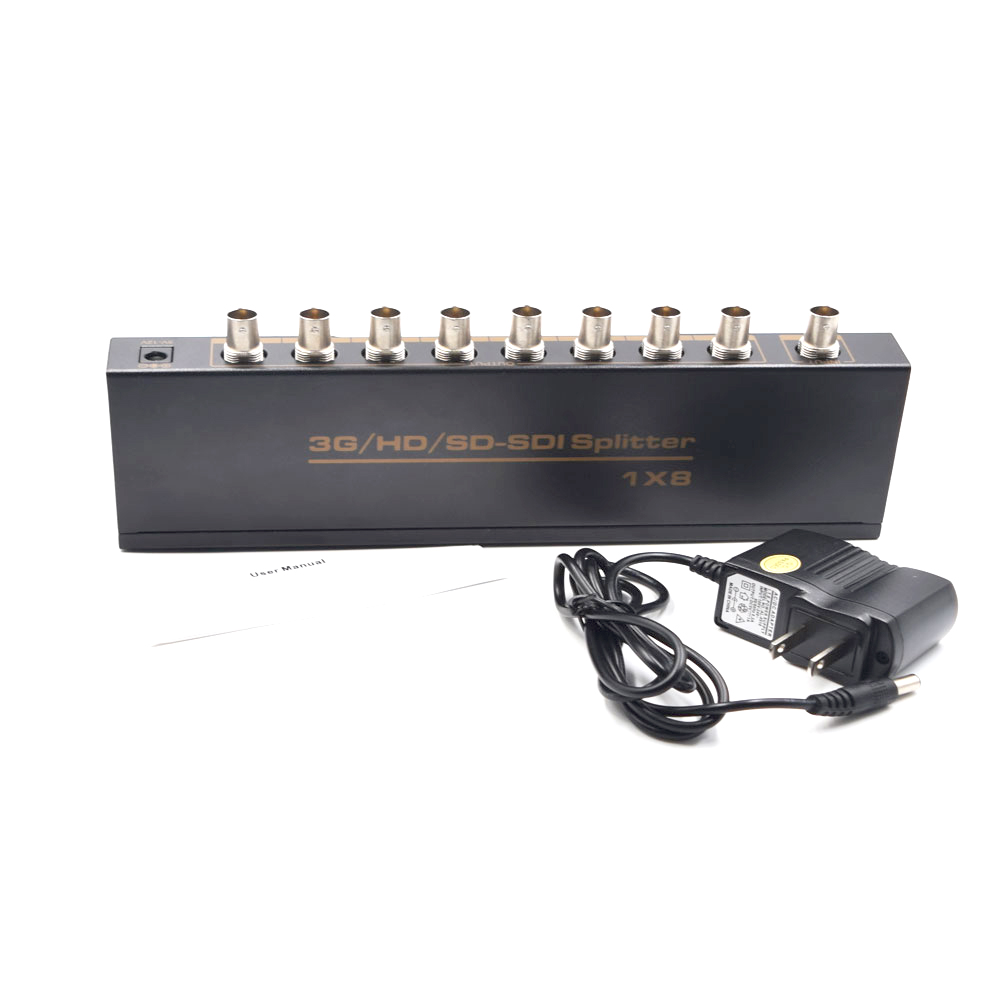

4.0 Package

(1)1x4 SDI Splitter ---------------------------------------------------------1PCS

(2)5V1A DC Power Supply adapter ---------------------------------------1PCS

(3)Operation Manual -----------------------------------------------------1PCS

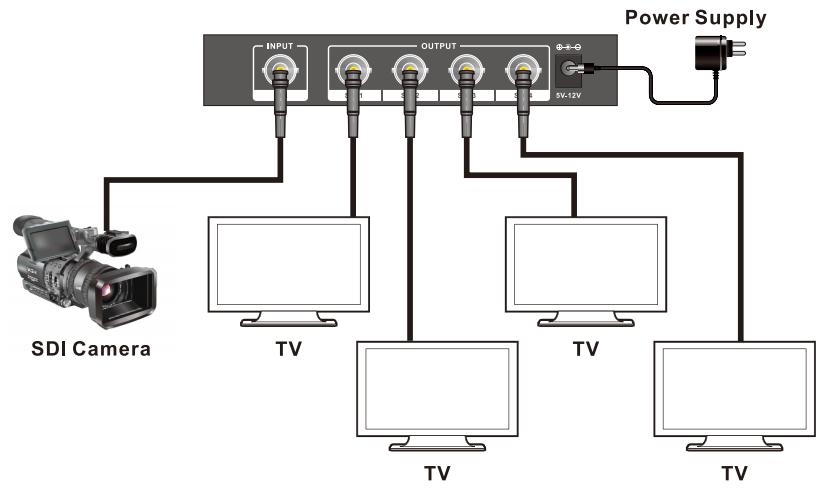

5.0 Application diagram

SDT-104 Diagram.jpg
