4K HDMI USB 3.0 Capture
[email protected] input and loopout
[email protected] output
USB 3.0 compliant
3.5mm audio extraction
Mic input

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)



4K HDMI USB 3.0 Capture

Part No.: VT-U20

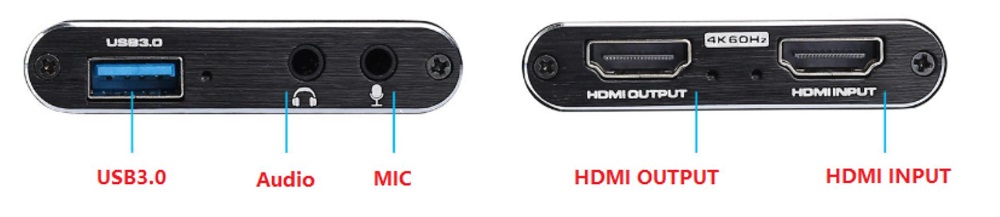

Port diagram.jpg



1.0 DESCRIPTION

HDMI to USB3.0 Video Capture Dongle, it is easy to carry, have a superior performance and compatibility, simple installation and many other features.

It supports [email protected] input/loopout and USB [email protected] The HDMI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.


2.0 FEATURES

Support HDMI 2.0b and HDCP 2.2.

Support [email protected] input and [email protected] output.

Support MIC input and 3.5mm audio extraction.

Plug and play with  PnP.

It is compatible with Windows, Linux, OS X operating systems

USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0

The process of video and audio is done by the dongle and will not occupy the CPU.

It can capture one single channel HD HDMI video signals.

It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.


3.0 PACKAGING ACCESSORIES

USB3.0 Capture-------------------------------------1Pcs

USB3.0 Cable---------------------------------------1Pcs

HDMI Cable-----------------------------------------1Pcs

User manual----------------------------------------1pcs


4.0 Demo Video

https://youtu.be/dB1487sYmyg

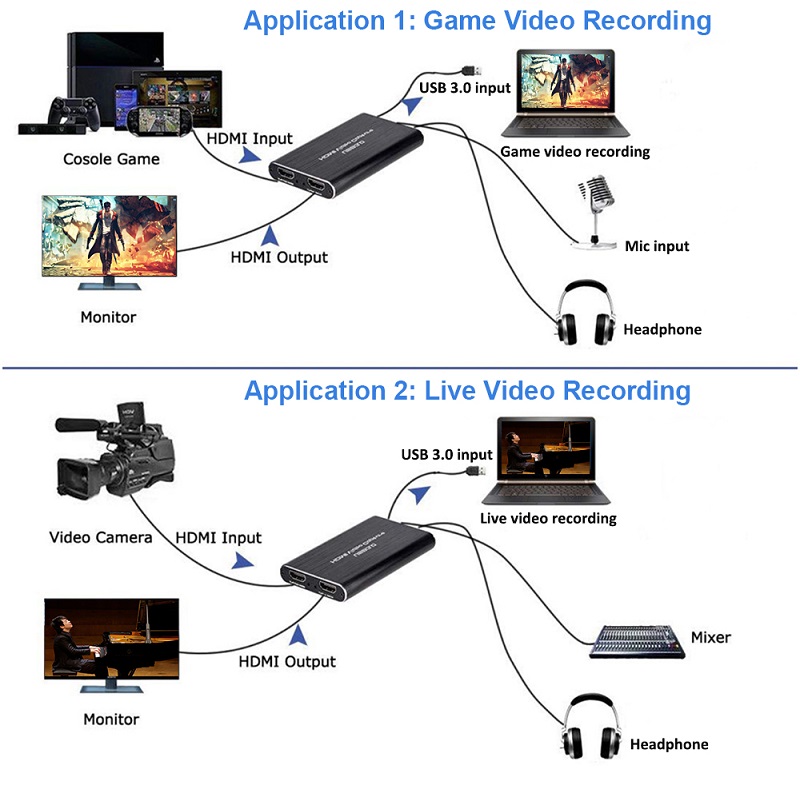

4.0 Application diagram

Diagram New1.jpg
