1x8 HDMI 2.0 splitter with EDID
18Gbps HDMI2.0 HDCP2.2 compliant
Resolution up to 4K@60Hz 4:4:4 HDR
Support EDID management

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)



1x8 HDMI 2.0 splitter with EDID 18Gbps bandwidth 4K@60Hz 4:4:4 HDR

Model No.: VT-108E

1.0 Introduction:

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.


2.0 Features:

1.Compliant with HDMI2.0, HDCP2.2 and DVI 1.0.

2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.

3.Support 3D frame sequential video format up to 1080p@60.

4.Support high resolution VESA mode video format up to QSXGA@60Hz.

5.Support HDR and 18Gbps Signal Speed.

6.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

7.Compatible with DVI by using HDMI to DVI adapter.

8.Extend the transmission distance and improve transmission signal.

9.Metal casing design and overall shielding without signal interference.

10.Power supply (please refer to technical parameter).


3.0 Packaging accessories:

1. HDMI 1×8 Splitter------------------------------------------------1 Pcs

2. 5V DC Power Adaptor-------------------------------------------1 Pcs

3. User Manual-------------------------------------------------------1 Pcs


4.0 EDID management

NumberEDID SelectorDescription
101080I,Stereo-Audio-2.0
211080I,Dolby-DTS-5.1
3101080I,HD-Audio-7.1
4111080P,Stereo-Audio-2.0
51001080P,Dolby-DTS-5.1
61011080P,HD-Audio-7.1
71103D,Stereo-Audio-2.0
81113D,Dolby-DTS-5.1
910003D,HD-Audio-7.1
1010014K2K@30,Stereo-Audio-2.0
1110104K2K@30,Dolby-DTS-5.1
1210114K2K@30,HD-Audio-7.1
1311004K2K@60,Stereo-Audio-2.0
1411014K2K@60,Dolby-DTS-5.1
1511104K2K@60,HD-Audio-7.1
161111Copy EDID From Sink

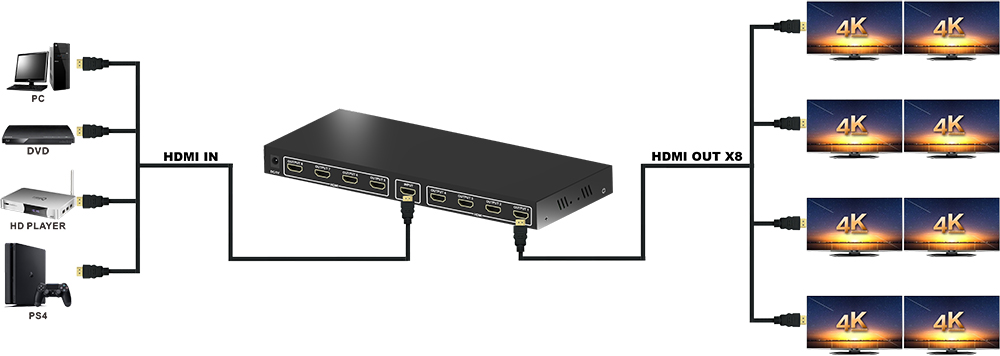

5.0 Application diagram

1x8 HDMI splitter diagram.jpg
