1x4 HDMI 2.0 splitter with EDID
18Gbps HDMI2.0 HDCP2.2 compliant
Resolution up to [email protected] 4:4:4 HDR
Support EDID management

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

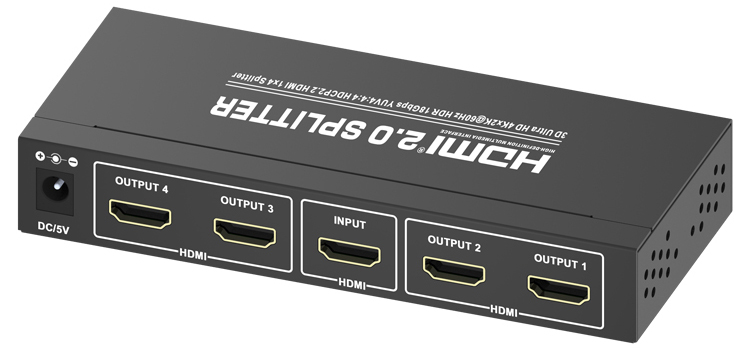

1x4 HDMI 2.0 splitter with EDID 18Gbps bandwidth [email protected] 4:4:4 HDR

Model No.: VT-104E


VT-104E-02 web.jpg

1.0 Introduction:

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.


2.0 Features:

1.Compliant with HDMI2.0, HDCP2.2 and DVI 1.0.

2.Support video format up to [email protected] with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to [email protected] with 12bit YCBCR 4:4:4.

3.Support 3D frame sequential video format up to [email protected]

4.Support high resolution VESA mode video format up to [email protected]

5.Support HDR and 18Gbps Signal Speed.

6.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

7.Compatible with DVI by using HDMI to DVI adapter.

8.Extend the transmission distance and improve transmission signal.

9.Metal casing design and overall shielding without signal interference.

10.Power supply (please refer to technical parameter).


3.0 Packaging accessories:

1. HDMI 1×4 Splitter------------------------------------------------1 Pcs

2. 5V DC Power Adaptor-------------------------------------------1 Pcs

3. User Manual-------------------------------------------------------1 Pcs

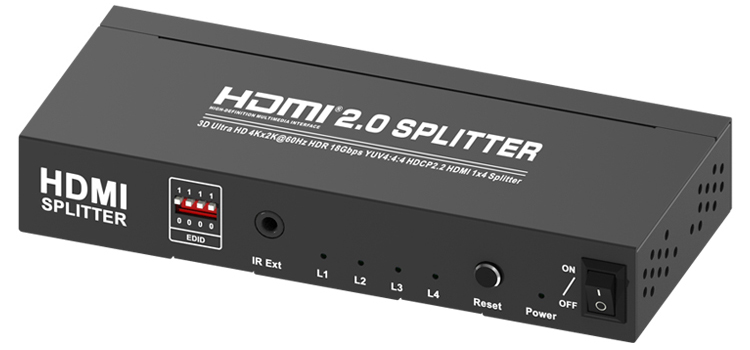

4.0 EDID management



NumberEDID SelectorDescription
101080I,Stereo-Audio-2.0
211080I,Dolby-DTS-5.1
3101080I,HD-Audio-7.1
4111080P,Stereo-Audio-2.0
51001080P,Dolby-DTS-5.1
61011080P,HD-Audio-7.1
71103D,Stereo-Audio-2.0
81113D,Dolby-DTS-5.1
910003D,HD-Audio-7.1
101001[email protected],Stereo-Audio-2.0
111010[email protected],Dolby-DTS-5.1
121011[email protected],HD-Audio-7.1
131100[email protected],Stereo-Audio-2.0
141101[email protected],Dolby-DTS-5.1
151110[email protected],HD-Audio-7.1
161111Copy EDID From Sink

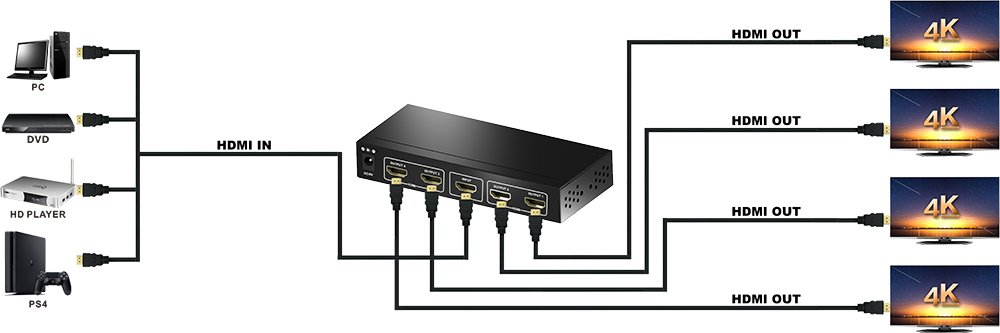

5.0 Application diagram

1x4 HDMI splitter diagram.jpg
