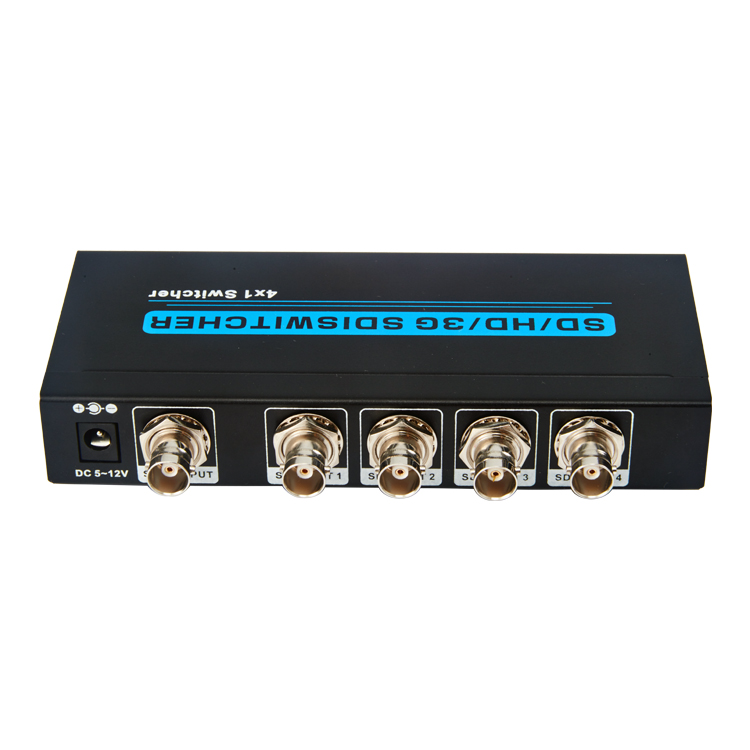

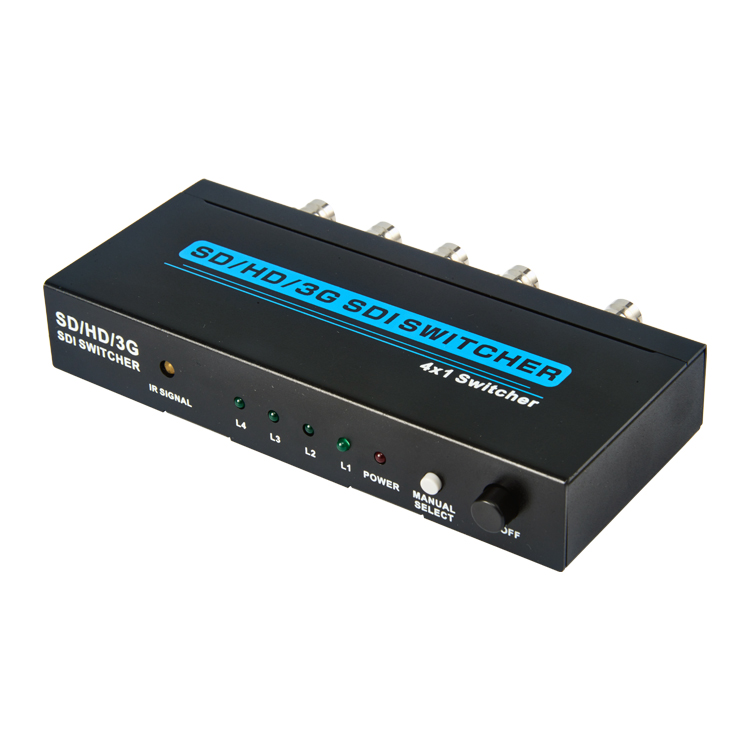

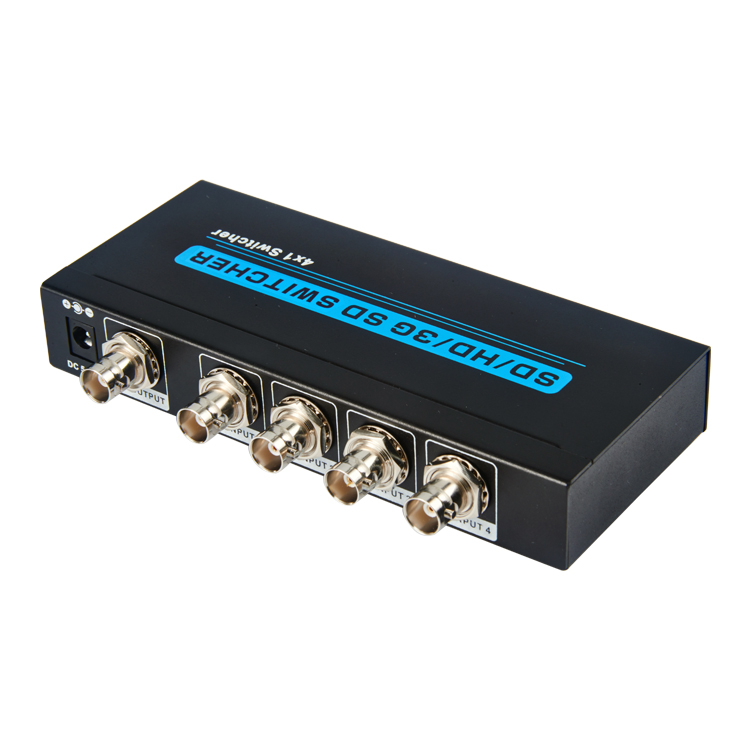

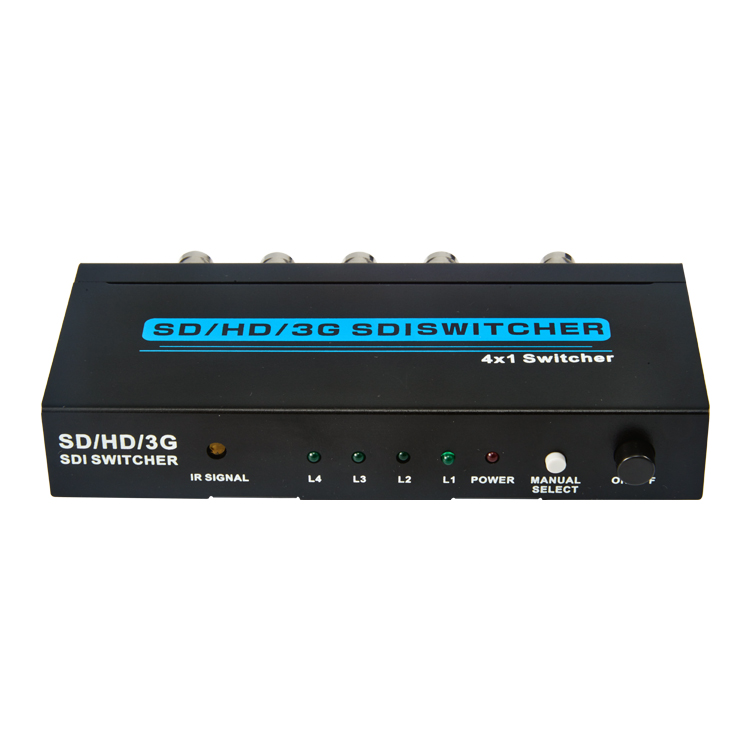

4x1 SDI switch

Model No. SDT-304
Support SD-SDI, HD-SDI, 3G-SDI
Resolution up to 1080P@60Hz

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

4x1-SDI-switch

Part No.: SDT-304

1.0 Introduction

This SDI signal switcher can switch a group of SDI signal to a SDI HD monitor by manual button or remote control. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It supports 2.97Gbps bandwidth lossless transmission over long distance.

2.0 Features

1.Supports 3 SDI input signal switch to 1 HD SDI monitor.

2.Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

3.Built-in cable equilibrium, clock recovery and drive.

4.Supports resolutions up to 1920x1080@60Hz.

5.Signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.

3.0 Package

(1)4x1 SDI Switcher --------------------------------------------- 1PCS

(2)5V 1A DC Power Supply adapter ---------------------------- 1PCS

(3)Operation Manual --------------------------------------------1PCS

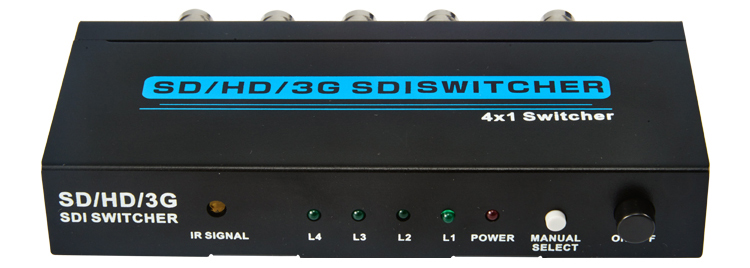

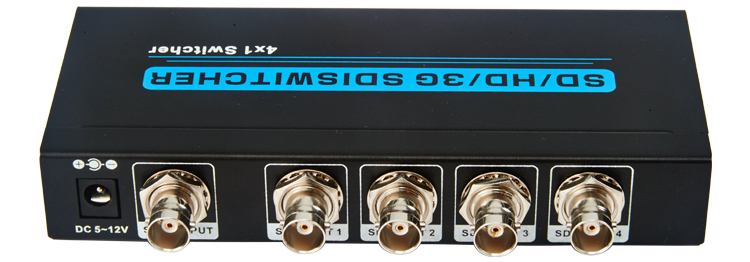

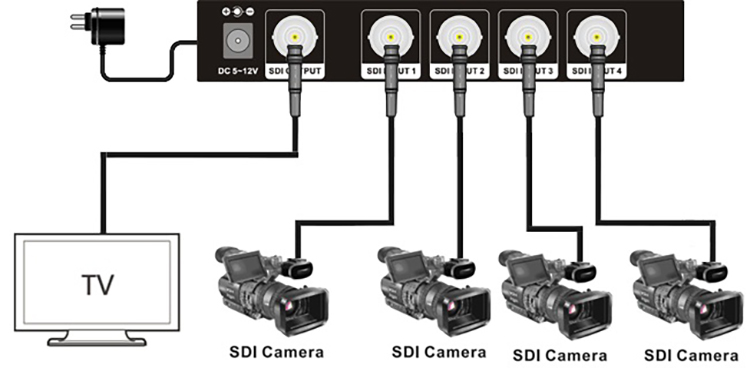

5.0 Application diagram
