VT-505S 4K HDMI 2.0 extender 60m

HDMI2.0, HDCP2.2 and DVI 1.0 compliant
Resolution up to 4K@60Hz 4:4:4
Extend HDMI signal up to 60m
EDID management

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

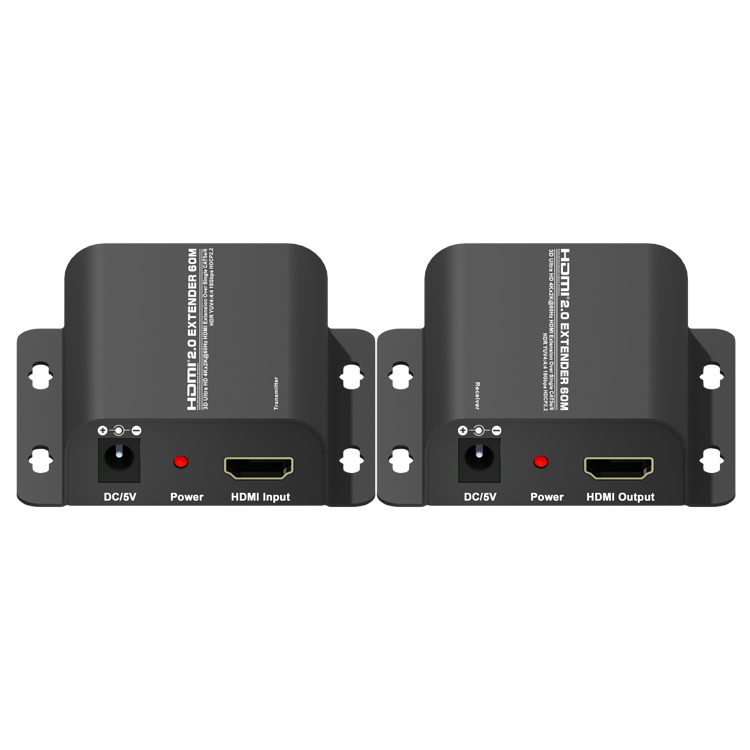

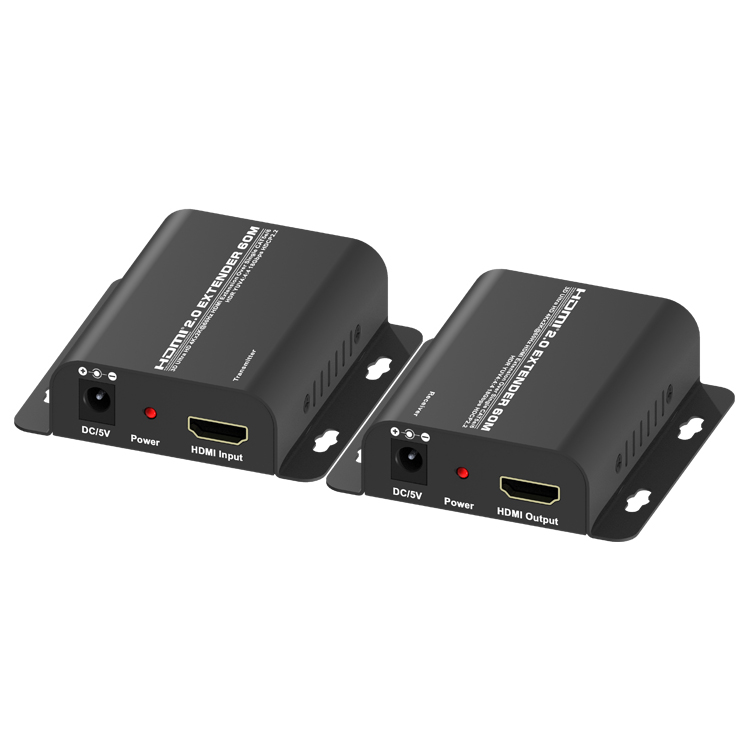

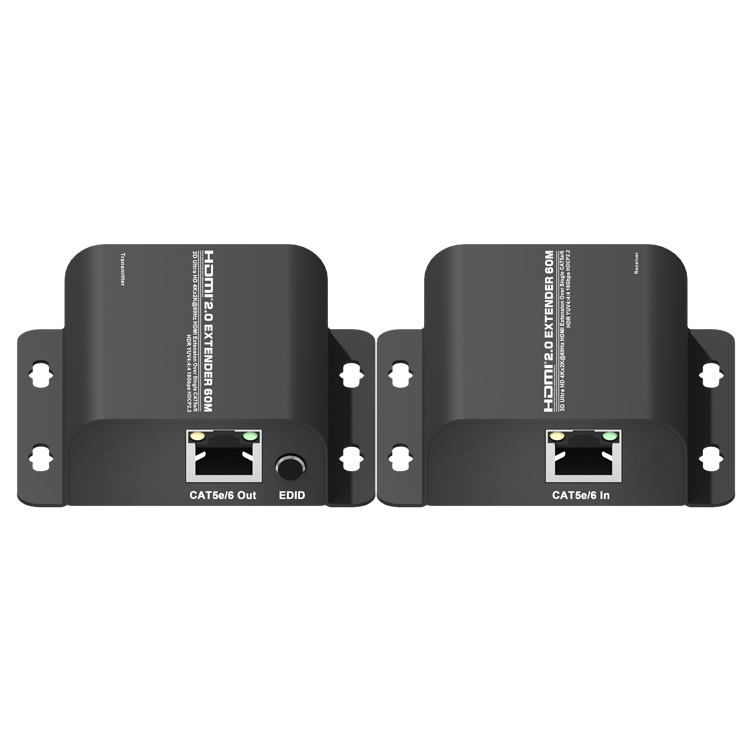

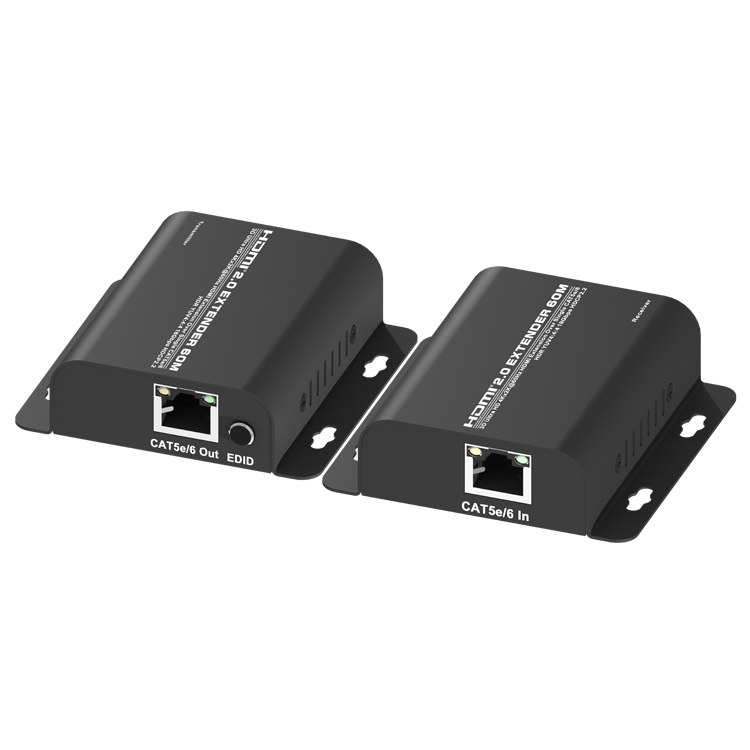

4K HDMI 2.0 extender 60m

Part No.: VT-505S

1.0 Introduction

The HDMI2.0 60M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,you can extend the 4K signal to 60 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.

2.0 Features

1) Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

2) Signal transmission: Cat5e or Cat-6(recommended) cables up to 60 meters.

3)Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

4)Support 3D frame sequential video format up to 1080p@60;

5)Support EDID Switch;

6)Audio format support: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

7)Extend the transmission distance and improve transmission signal;

3.0 Packaging Accessories

1.HDMI Transmitter -------------------1PCS

2.HDMI Receiver ----------------------1PCS

3.Power supply-------------------------2PCS

4.User manual--------------------------1PCS

4.0 YouTube Demo Video

https://youtu.be/l3jsB_kTSao

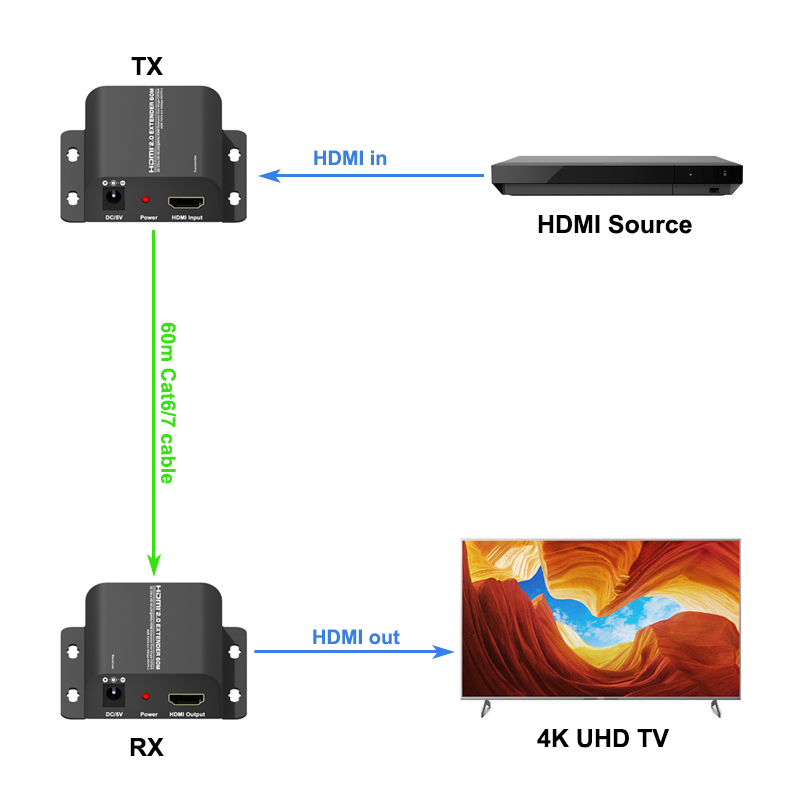

5.0 Diagram
