VT-SMXA1616 16x16 4K HDMI Seamless Matrix

10Gbps HDMI 1.4 HDCP1.4 compliant
Resolution up to 4K@30Hz
Support videowall and multiview
Support IR control, RS-232 control and Web control

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

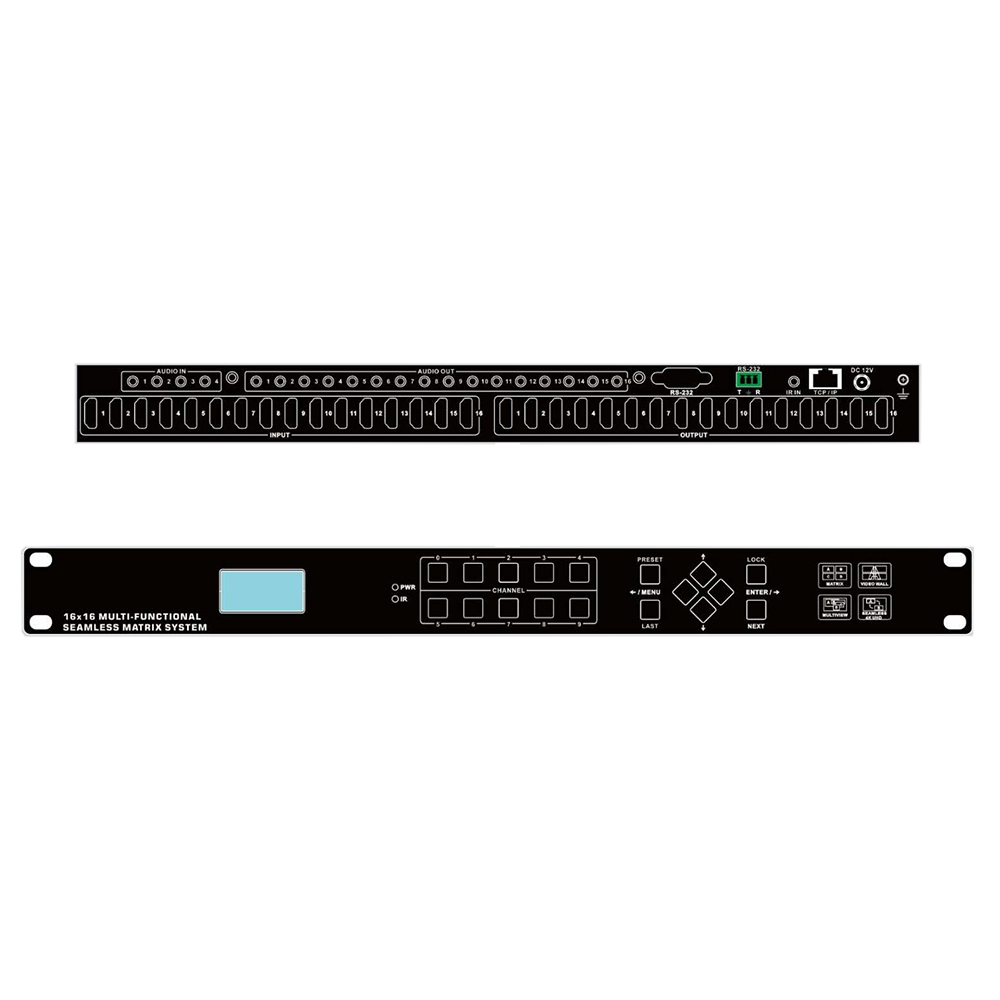

16x16 HDMI 1.4 Seamless Matrix Support Video Wall and Multiview

Model No.: VT-SMXA1616

1.0 Introduction:

VT-SMXA1616 allows you to connect with 16 HDMI sources and TVs. Easily switch the sources via remote, RS-232 commands or Web control. Also supports EDID management.

2.0 Features:

1. Compliant with HDMI 1.4, HDCP 1.4 and 10Gbps bandwidth.

2. Support video format up to 4k2k@30Hz.

3. Seamless switch between 16 HDMI sources and displays.

4. Various control: Panel, IR remote, RS-232, Web control.

5. Flexible EDID management.

6. Compatible with DVI by using HDMI to DVI adapter.

7. Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. 16x16 HDMI Matrix -------------------------------------------------1 Pcs

2. 12V/5A DC Power Adaptor-------------------------------------1 Pcs

3. IR Remote---------------------------------------------------------1 Pcs

4. User Manual------------------------------------------------------1 Pcs

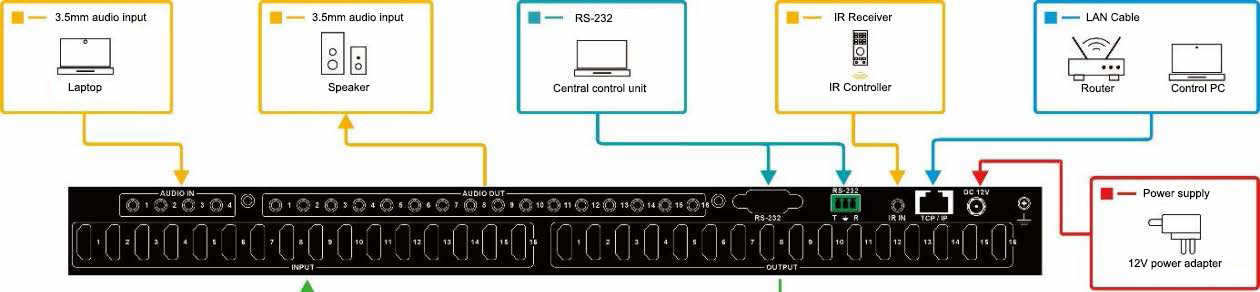

4.0 Application Diagram
