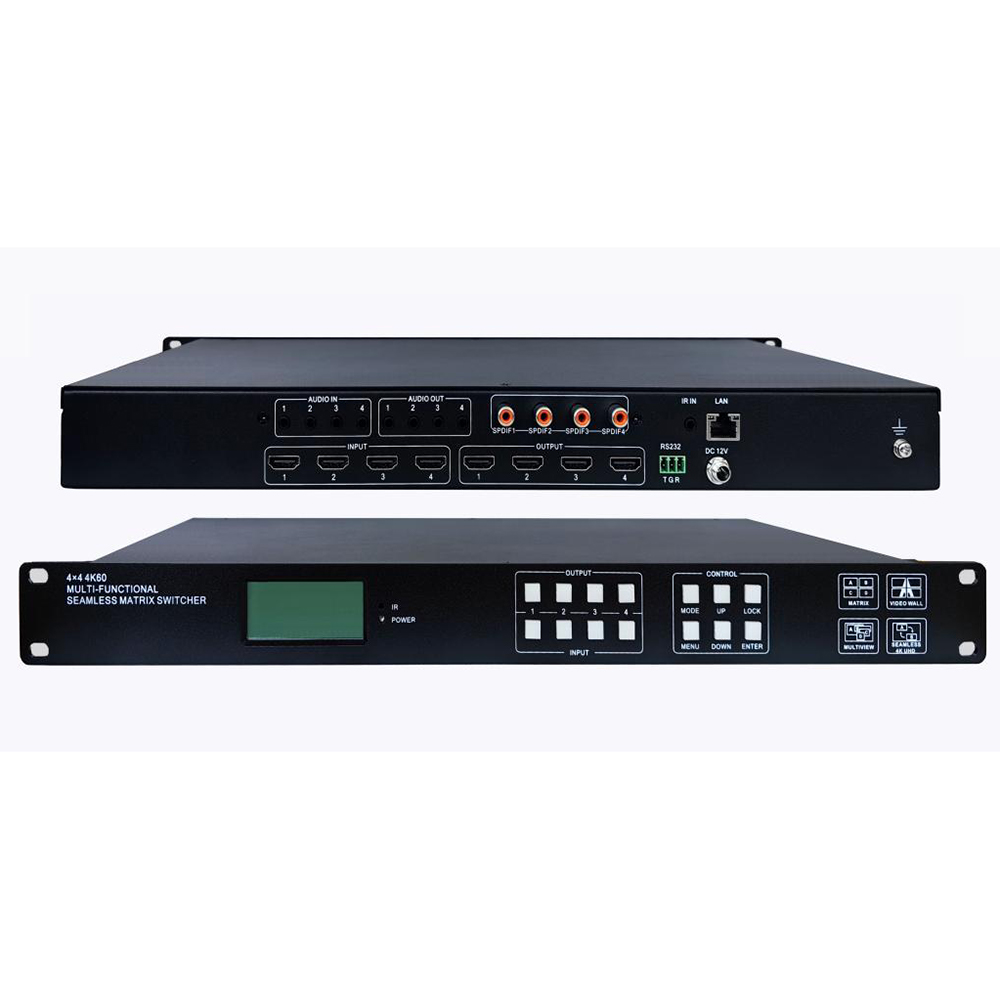

VT-SMXB44 4 HDMI 2.0 Seamless Matrix

18Gbps HDMI2.0 HDCP2.2 compliant
Resolution up to 4K@60Hz 4:4:4 HDR
Support videowall and multiview
Support IR control, RS-232 control and Web control

4x4 HDMI 2.0 Seamless Matrix Support Video Wall and Multiview

Model No.: VT-SMXB44

1.0 Introduction:

VT-SMXB44 allows you to connect with 8 HDMI sources and TVs. Easily switch the sources via remote, RS-232 commands or Web control. Also supports EDID management.

2.0 Features:

1. Compliant with HDMI2.0, HDCP2.2 and 18Gbps bandwidth.

2. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.

3. Seamless switch between 4 HDMI sources and displays.

4. Various control: Panel, IR remote, RS-232, Web control.

5. Flexible EDID management.

6. Compatible with DVI by using HDMI to DVI adapter.

7. Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. 4x4 HDMI Matrix -------------------------------------------------1 Pcs

2. 12V/3A DC Power Adaptor-------------------------------------1 Pcs

3. IR Remote---------------------------------------------------------1 Pcs

4. User Manual------------------------------------------------------1 Pcs

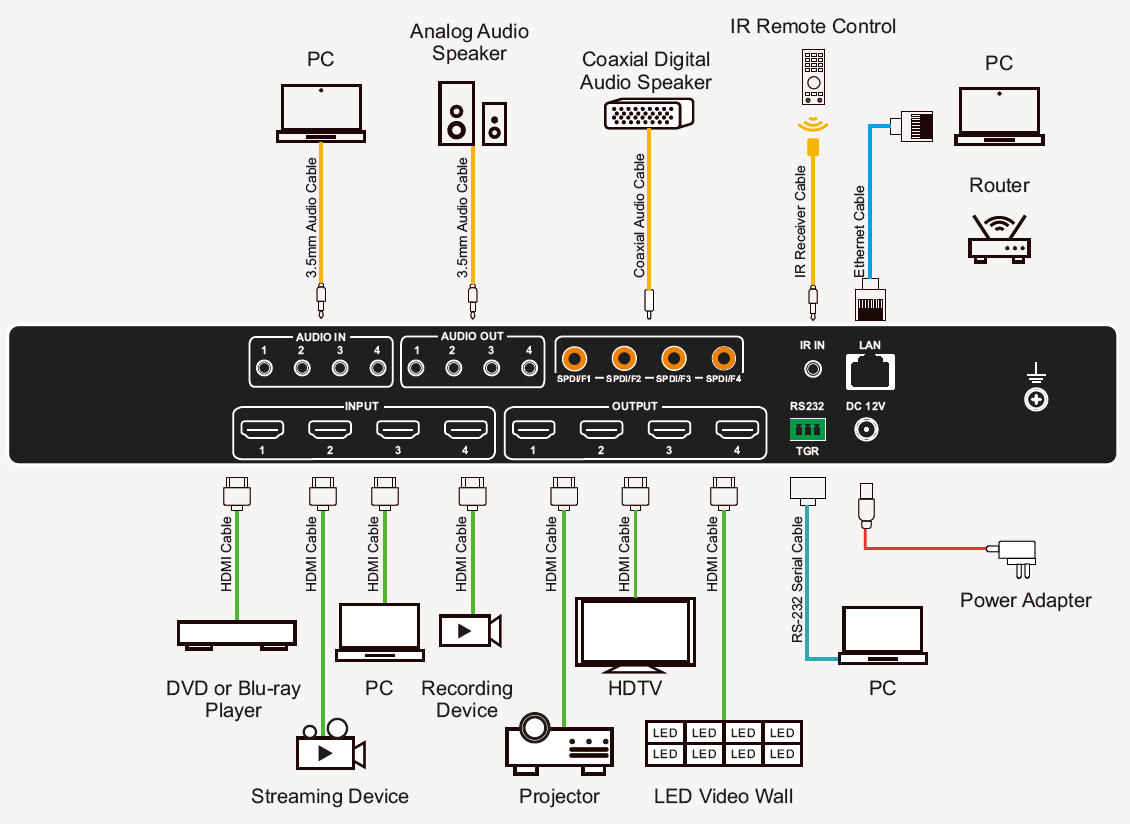

4.0 Application Diagram
