VT-IPM915 HDMI over IP extender

Resolution up to 1080P@60Hz
HDMI over IP matrix
Transmit up to 150m
Support IR and RS-232 control

1080P HDMI over IP extender matrix 150m support KVM and video wall

Part No.: VT-IPM915

1.0 Introduction

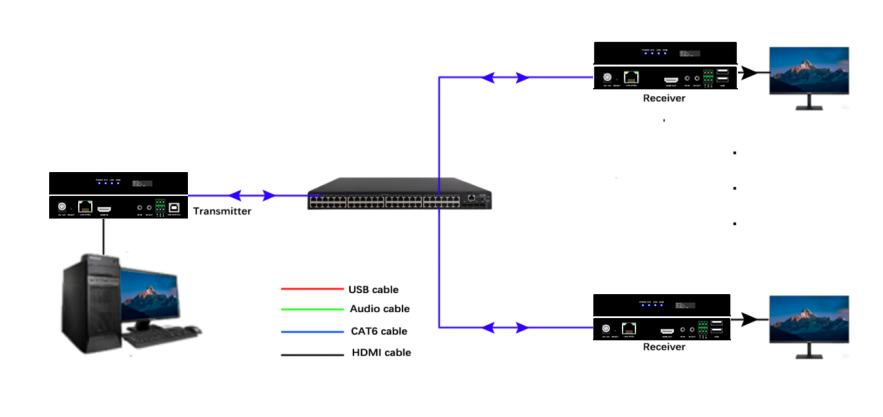

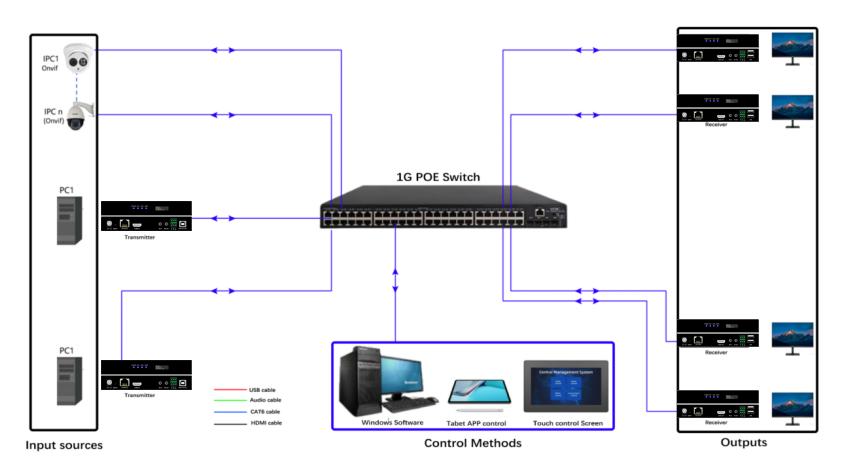

This a 1080p HDMI over IP Matrix, Video Wall system, The encoder(IPM-915T) and decoder(IPM-915R) can work together to provide end-to-end streaming system and work with network switch to realize a one to many, many to one or many to many distribution. It can transmit the video, audio and RS232 signals over single LAN cable, with the POE function, the Rx and Tx can be powered by a POE network switch, it helps simplify the installation. Besides working as the matrix switch and distribution systems, it also supports video wall and multiview. The resolution of this system can up to 1920x1080p@60Hz.

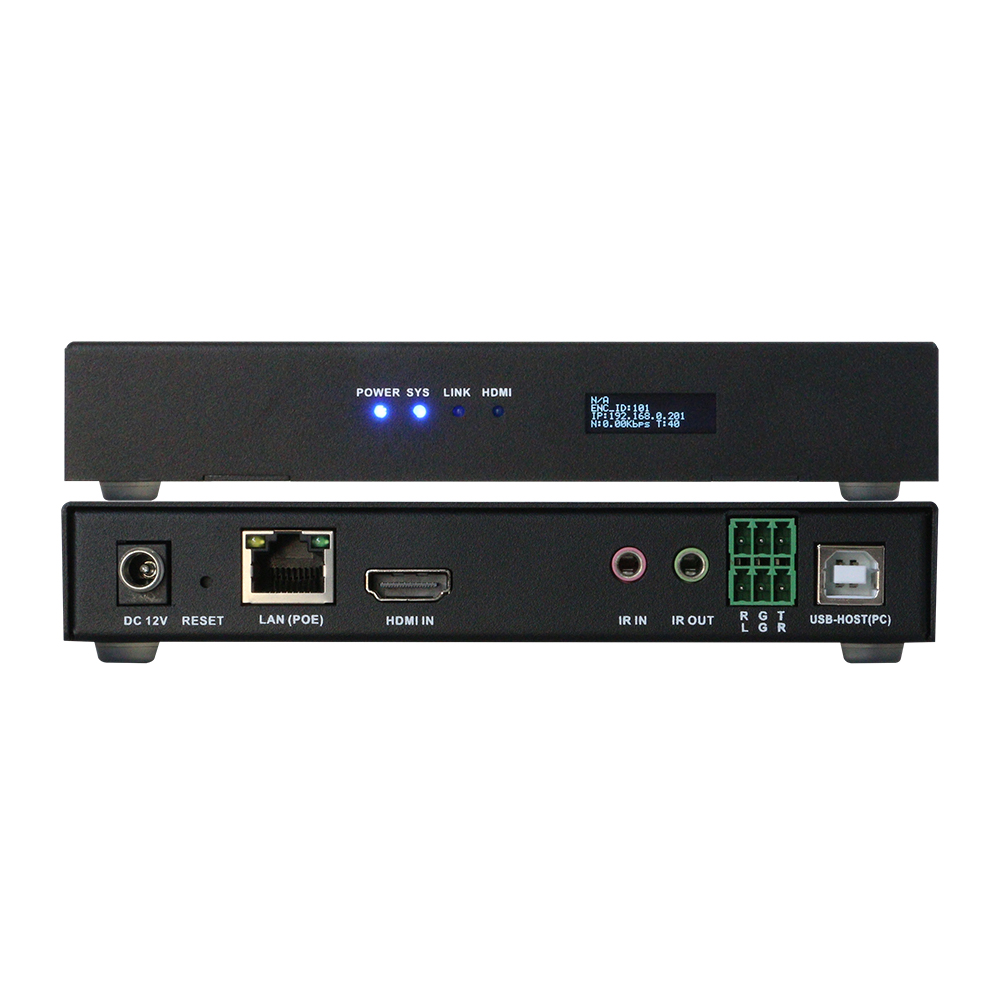

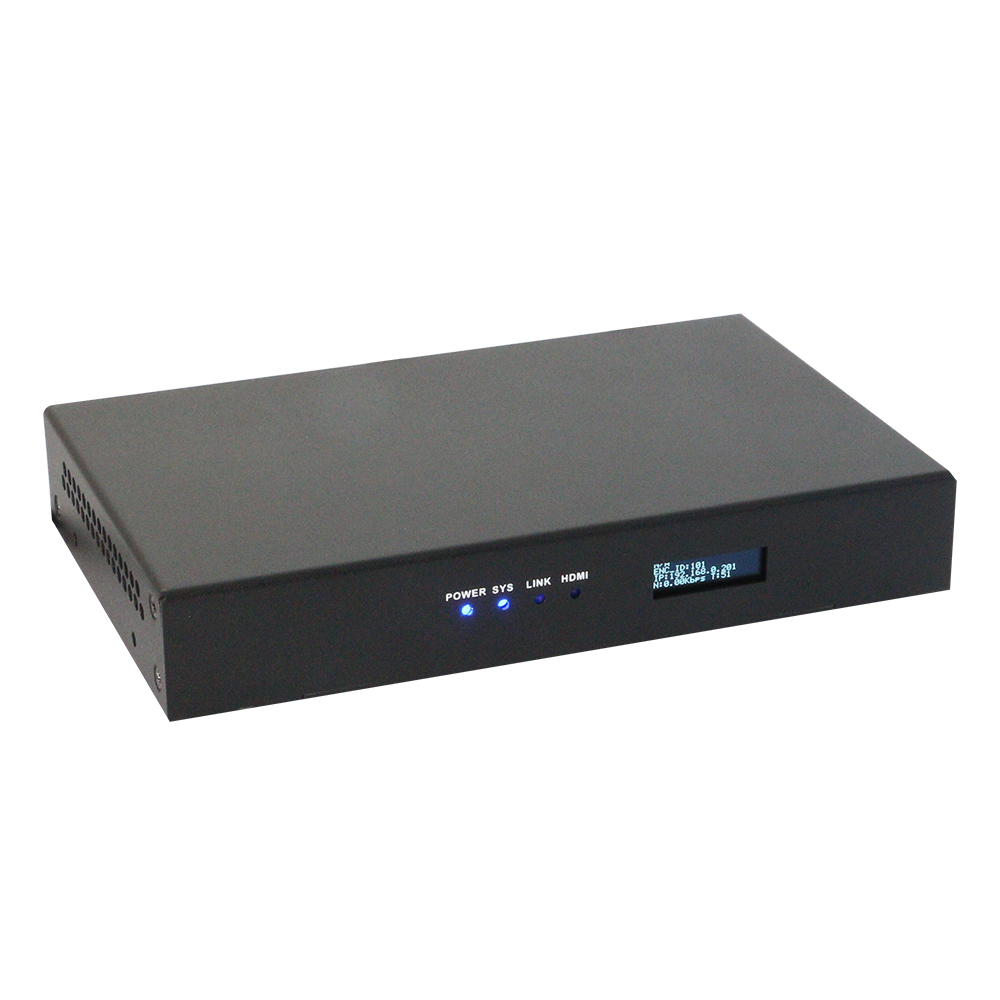

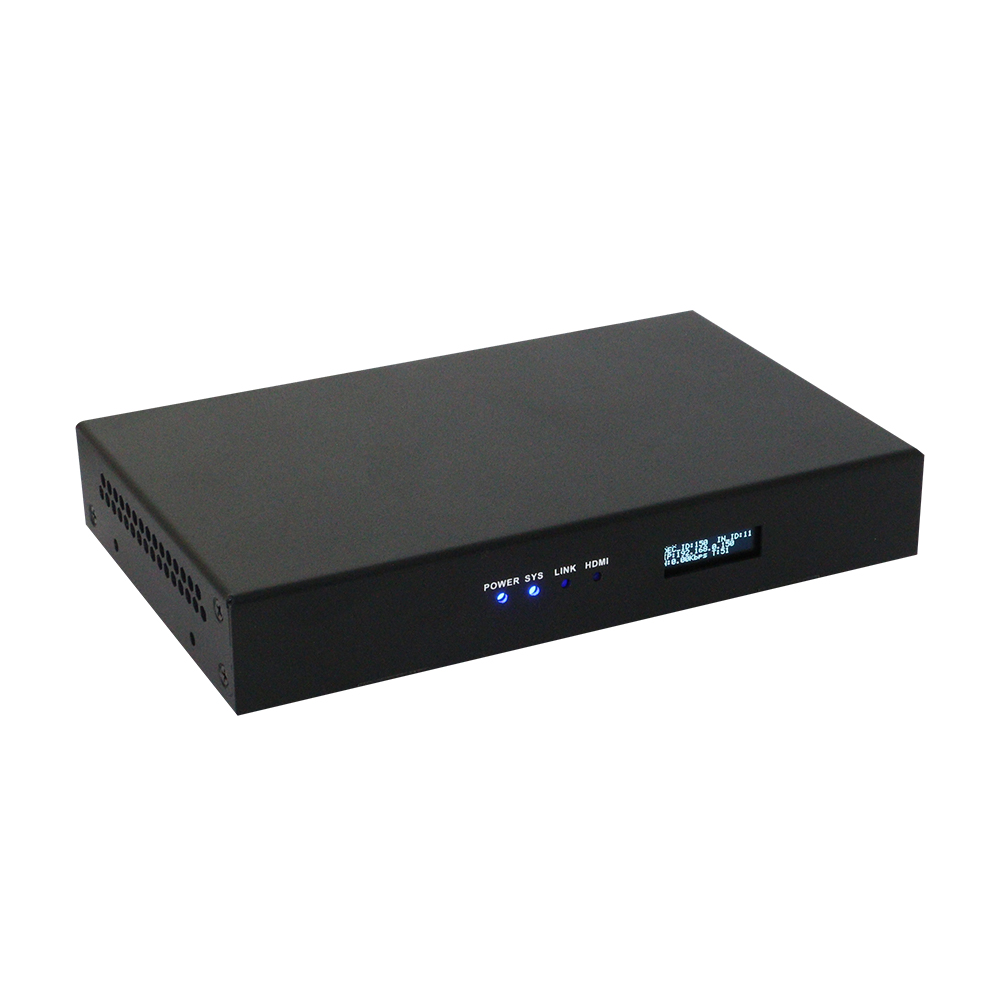

On the front panel there is a LCD screen to show name, IP address and version info, it will be super helpful when do the system settings.

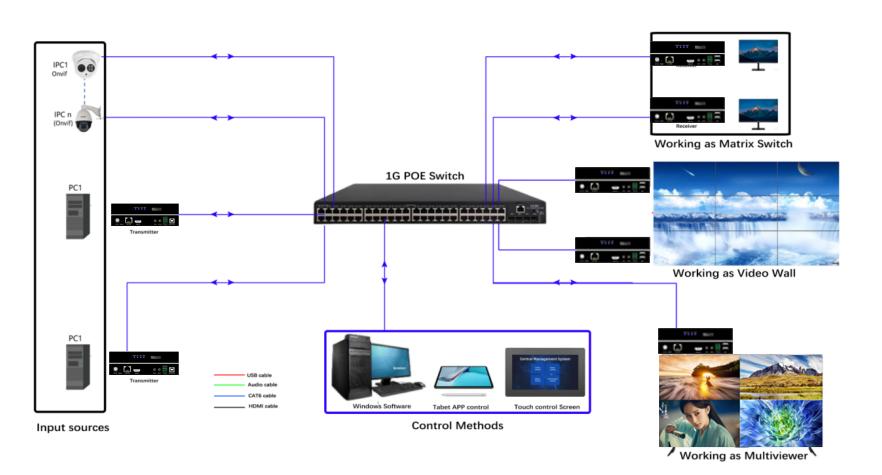

This system supports Windows software, Android/iOS tablet APP and UDP commands control, also support the control UI customization. Support matrix switcher switching, Video Wall Control, preview functions and the RTSP IP camera decoding.

2.0 Features

1) HDMI 1.3, HDCP 1.2 compliant, support input/output resolution up to 1920x1080p@60hz.

2) Support TCP/IP protocol, transmit HDMI signal over ethernet switch.

3) Support many-to-many HDMI matrix switch over POE switch.

4) Support USB KVM, RS-232 and two-way IR control.

5) OSupport Video Wall and mutiview.

6) Transmission up to 150m over single Cat5e/6 cable.

3.0 Packaging Accessories

1. HDMI Transmitter -------------------1PCS

2. HDMI Receiver ----------------------1PCS

3. IR Transmitter------------------------1PCS

4. IR Receiver---------------------------1PCS
