1x4 4K HDMI splitter 60m

HDMI 2.0, HDCP 2.2
4K@60Hz resolution
Extends 60 meters
HDMI loopout
PoC

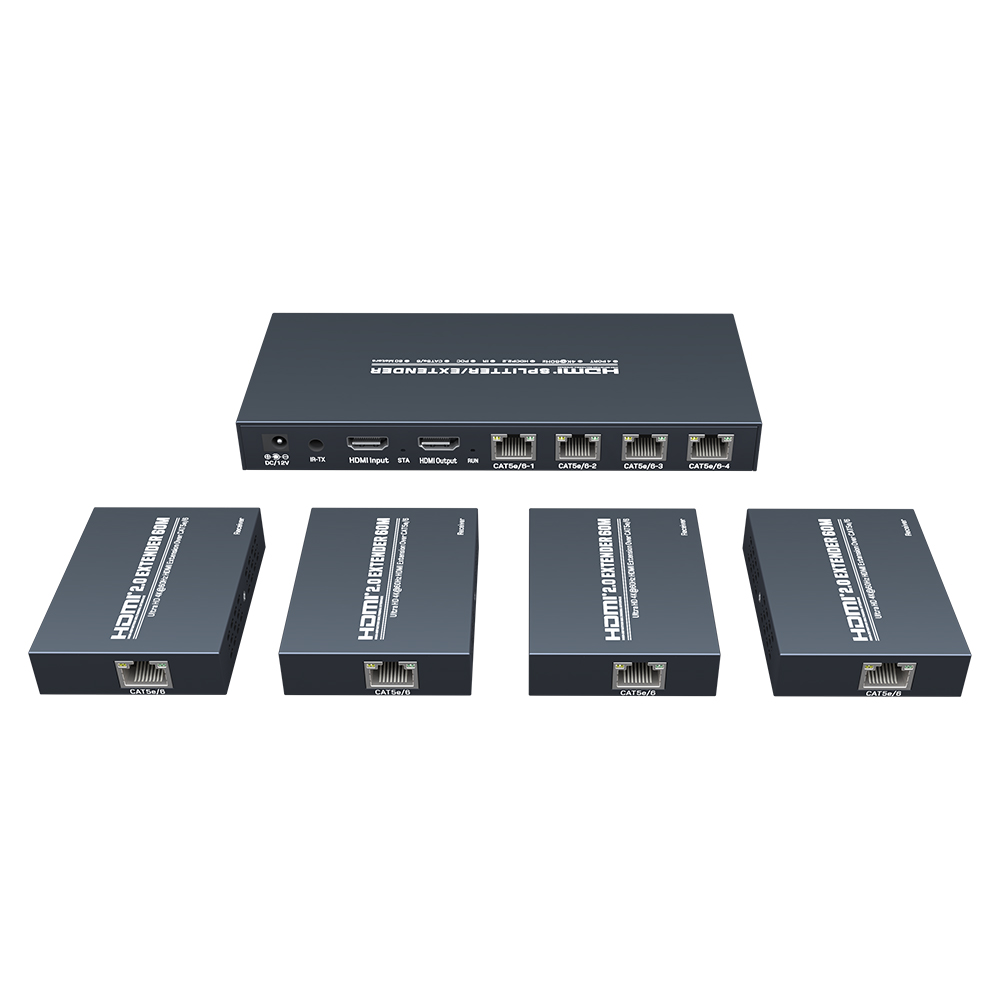

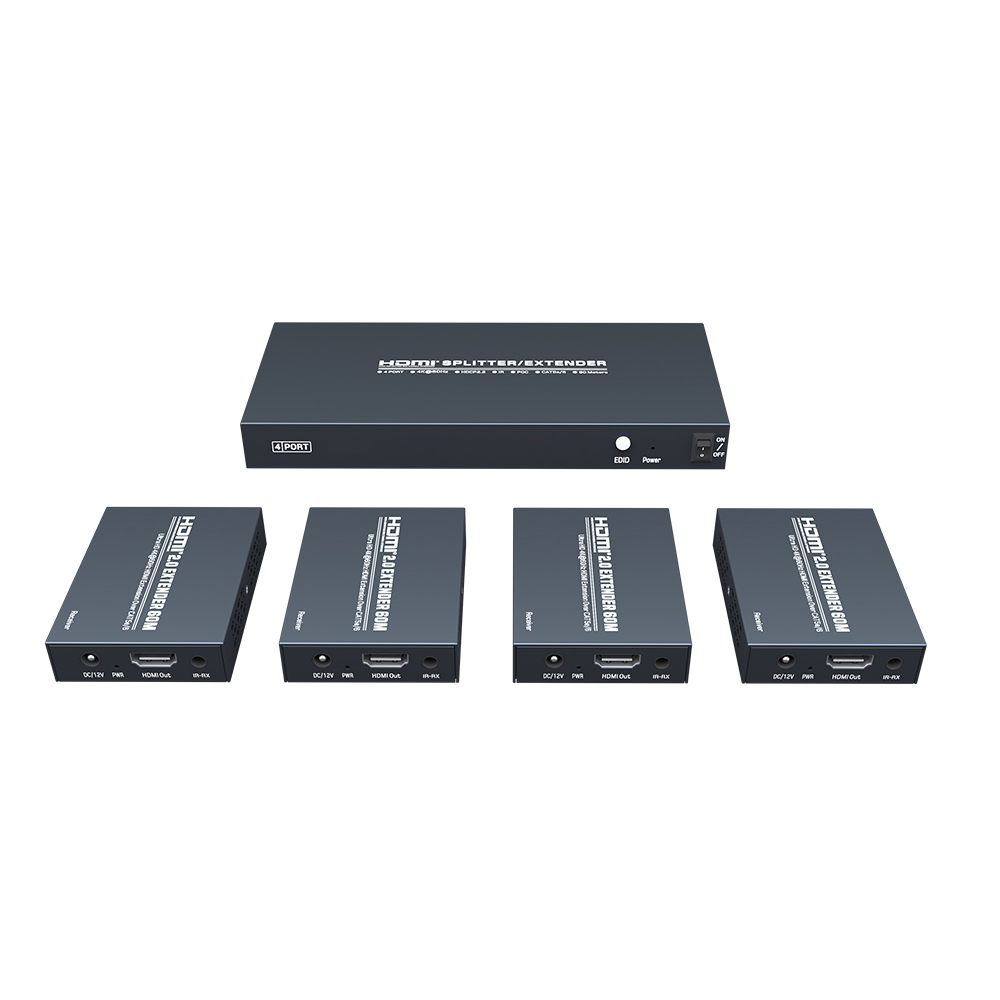

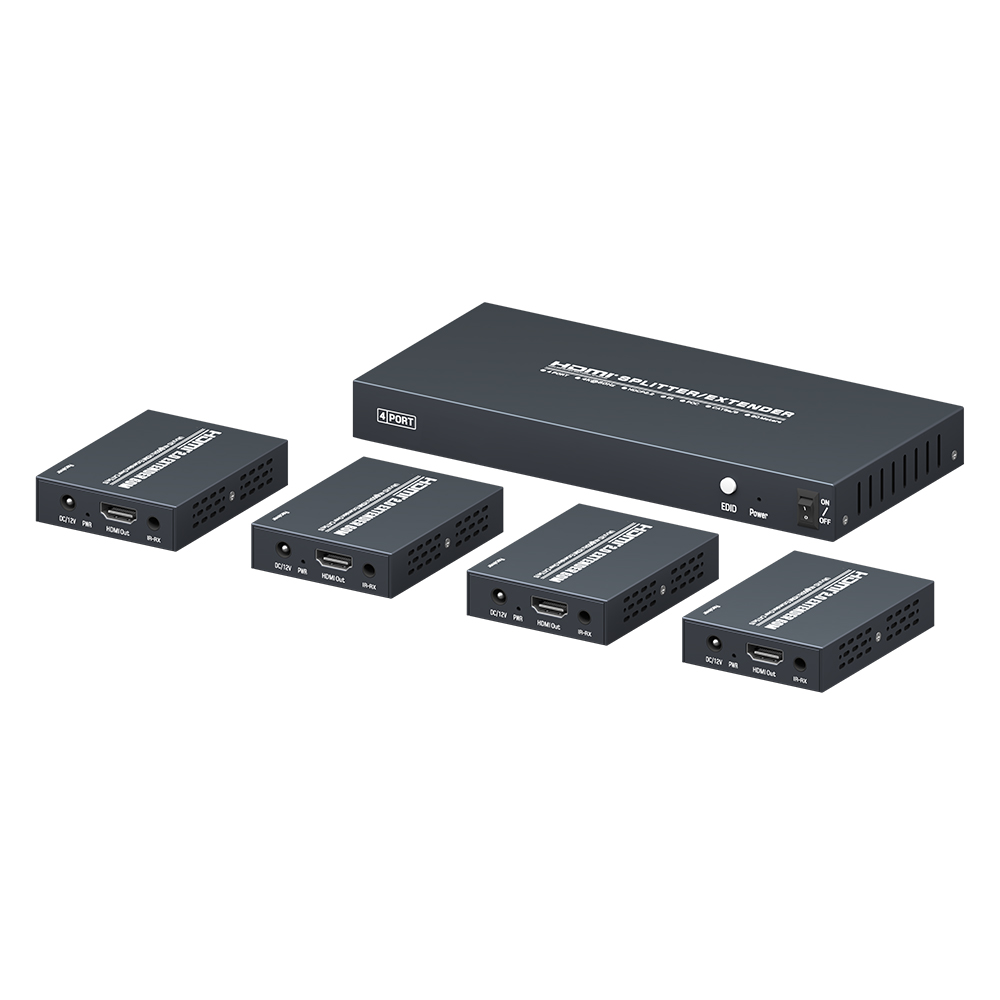

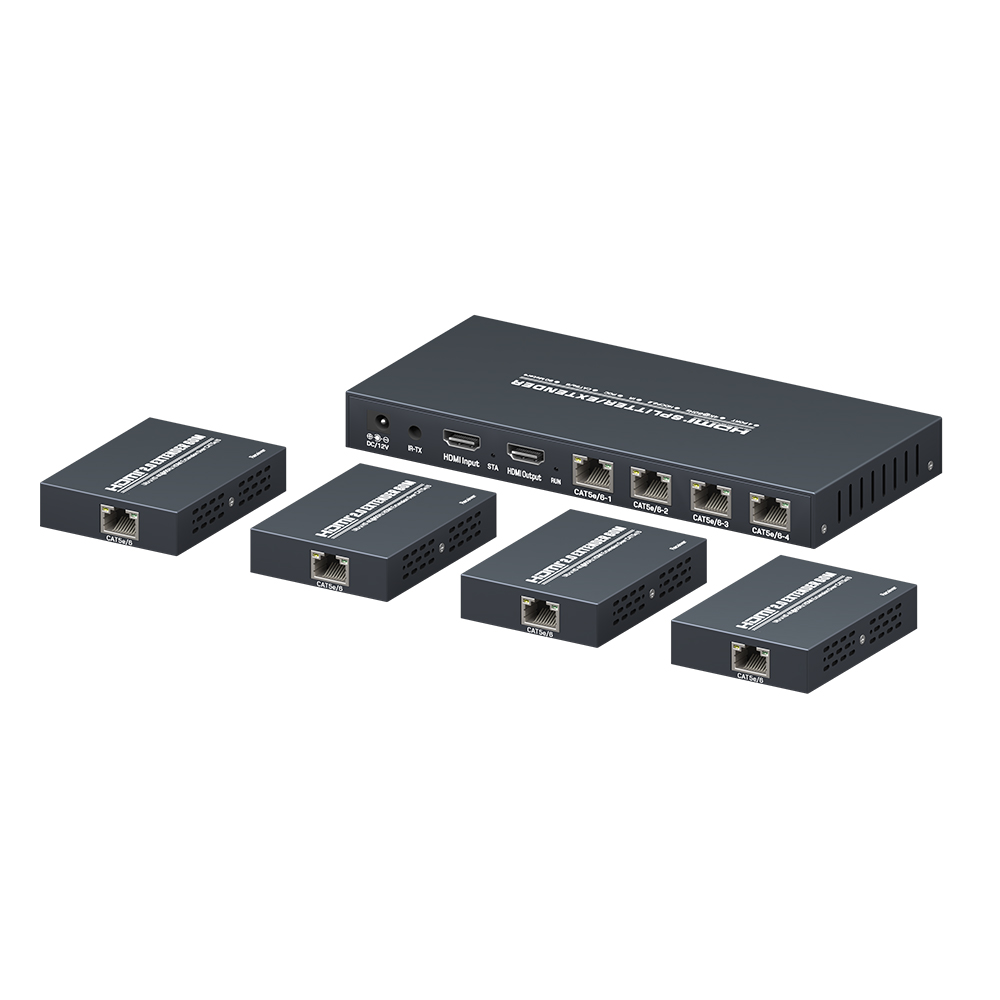

1x4 HDMI 2.0 splitter extender over 60 meters

Model No.: VT-104EX60S

1.0 Introduction:

VT-104EX60S is HDMI 2.0 HDCP 2.2 compliant 4K splitter + extender with PoC (Power over cable).

2.0 Features:

1.Compliant with HDMI 2.0 HDCP 2.2.

2.Support video format up to 4K@60Hz.

3, Come with HDMI local loopout.

4, PoC: the receiver is powered by the transmitter over cat cable, no extra power supply for the receivers.

5. Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.

6.Compatible with DVI by using HDMI to DVI adapter.

7.Extend the transmission distance and improve transmission signal.

8.Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. HDMI 1×4 Splitter------------------------------------------------1 Pcs

2. HDMI receiver ----------------------------------------------------4 Pcs

3. DC Power Adaptor-------------------------------------------------1 Pcs

4. User Manual-------------------------------------------------------1 Pcs

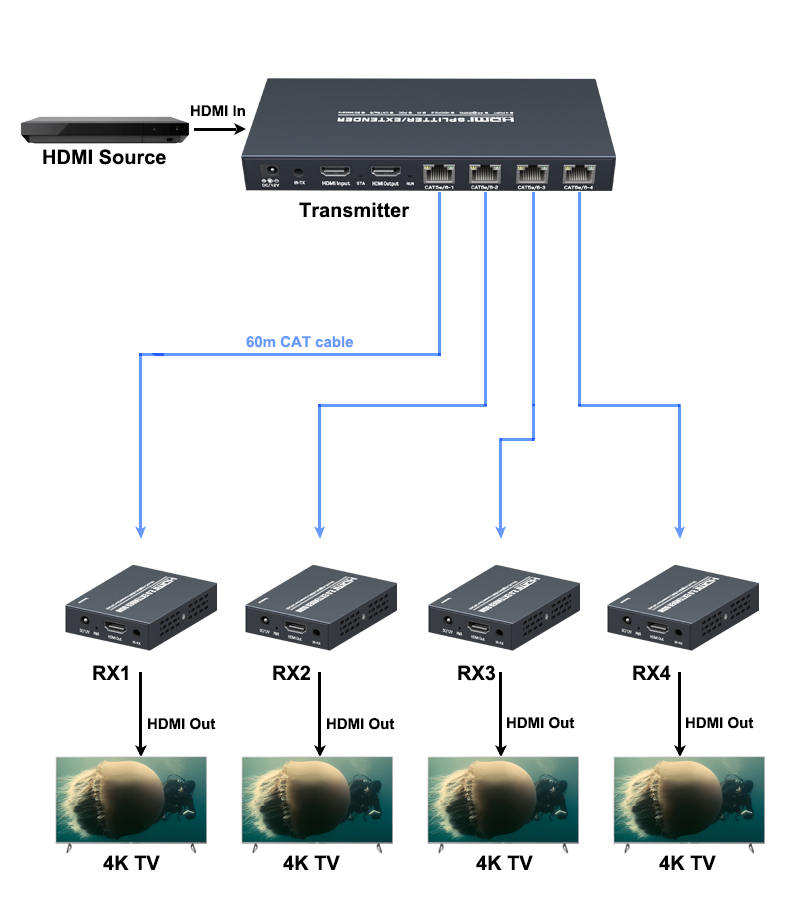

4.0 Diagram

VT-104EX60S 1x4 diagram.jpg
