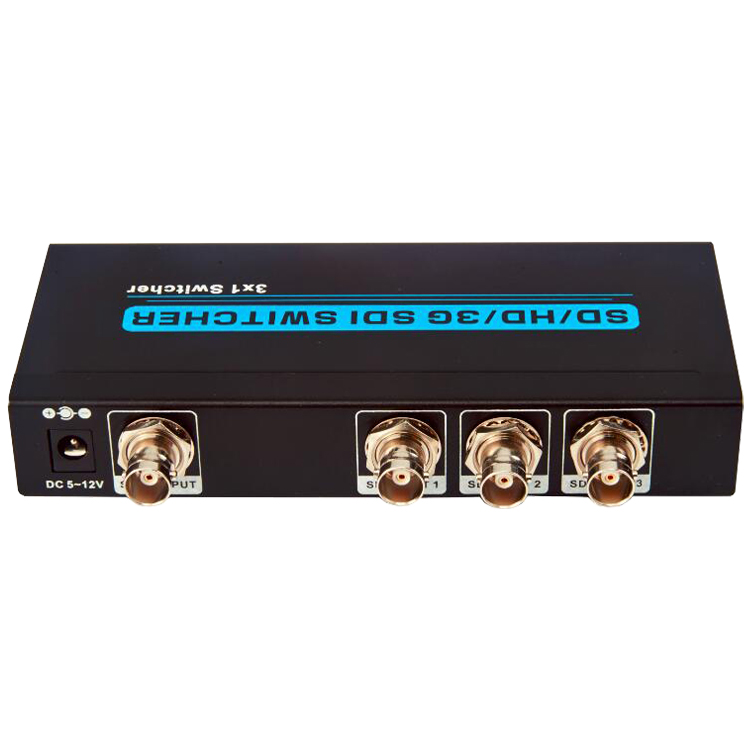

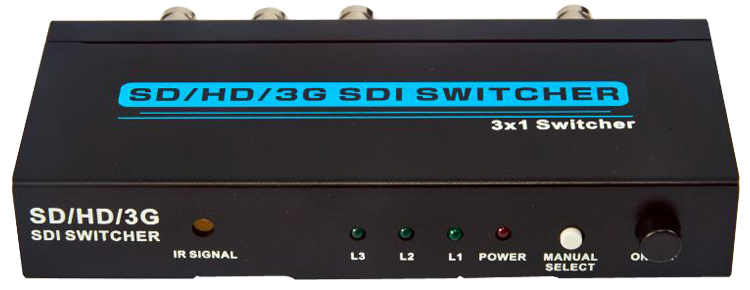

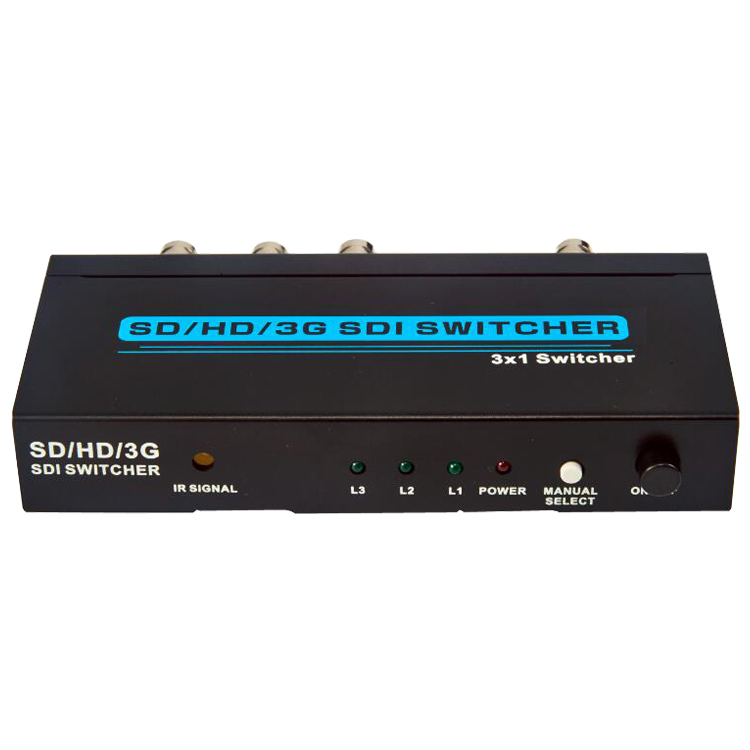

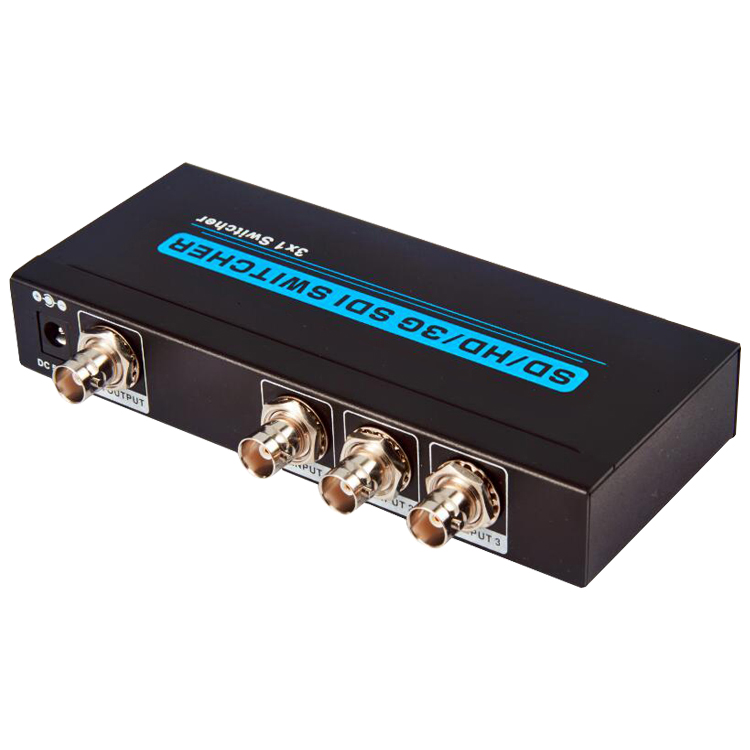

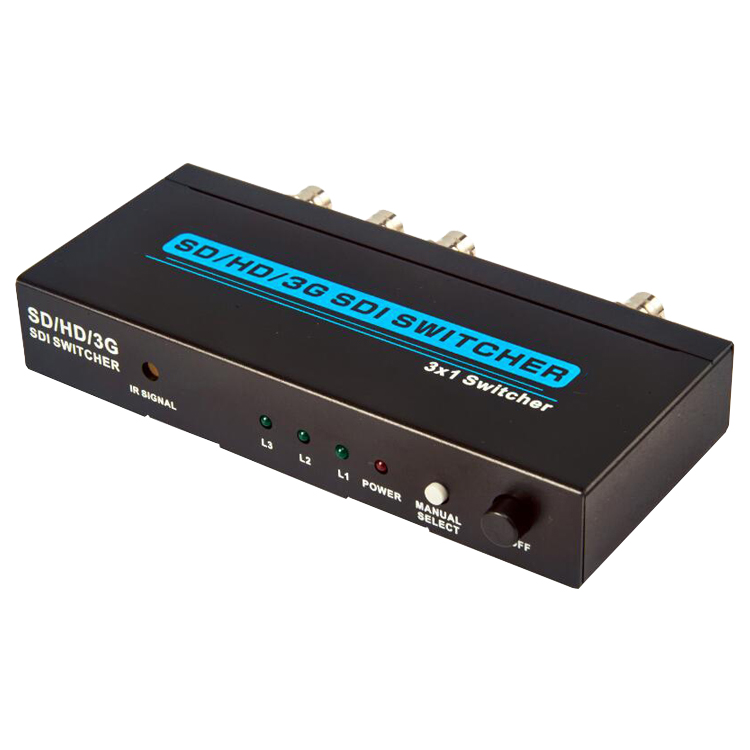

3x1 SDI switch
Model No. SDT-303
Support SD-SDI, HD-SDI, 3G-SDI
Resolution up to 1080P@60Hz


Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)



3x1-SDI-switch

Part No.: SDT-303

SDT-303-003 web.jpg

SDT-303-004 web.jpg


1.0 Introduction

This SDI signal switcher can switch a group of SDI signal to a SDI HD monitor by manual button or remote control. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It supports 2.97Gbps bandwidth lossless transmission over long distance.


2.0 Features

1.Supports 3 SDI input signal switch to 1 HD SDI monitor.

2.Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

3.Built-in cable equilibrium, clock recovery and drive.

4.Supports resolutions up to 1920x1080@60Hz.

5.Signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.


3.0 Package

(1)3x1 SDI Switcher --------------------------------------------- 1PCS

(2)5V 1A DC Power Supply adapter ---------------------------- 1PCS

(3)Operation Manual --------------------------------------------1PCS

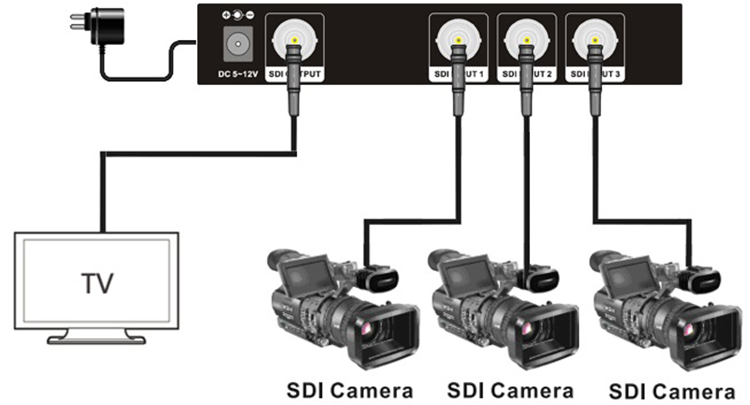

5.0 Application diagram

SDT-303 diagram.jpg
