1x2 SDI splitter
Model No. SDT-102
Resolution up to 1080P@60Hz
Support SD-SDI, HD-SDI, 3G-SDI

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

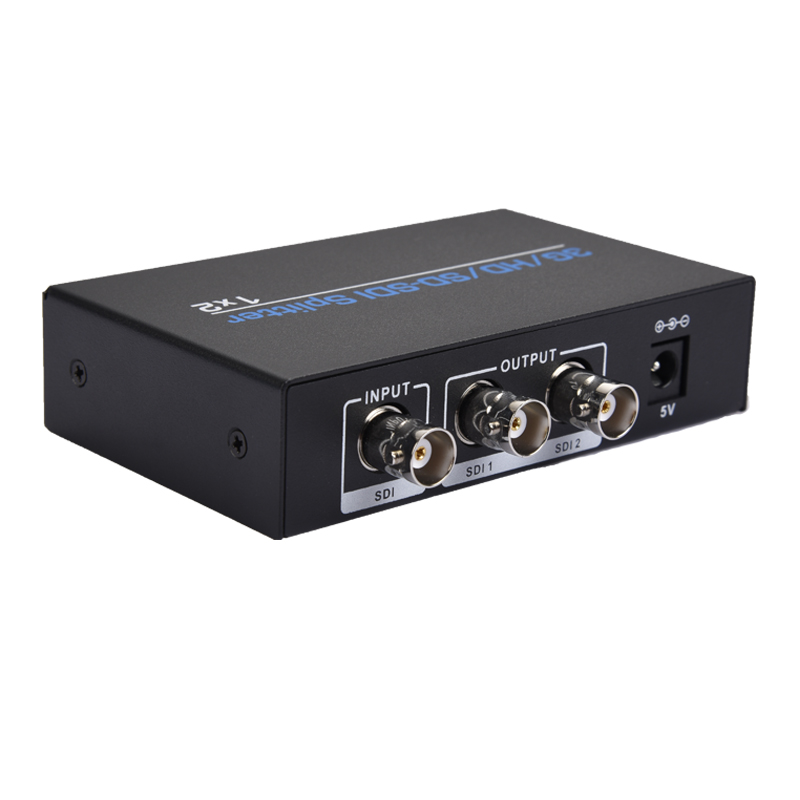

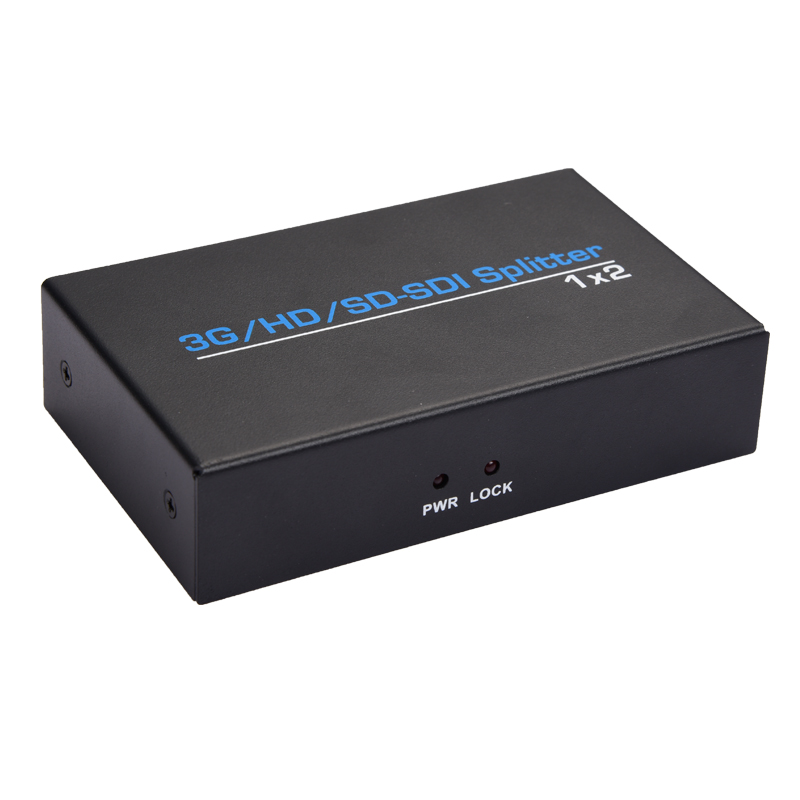

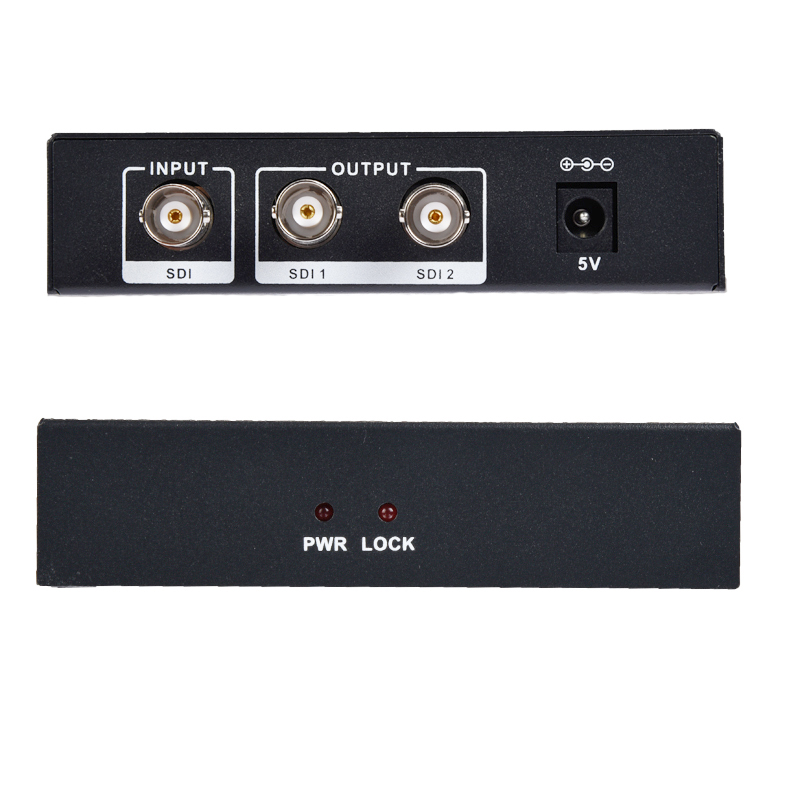

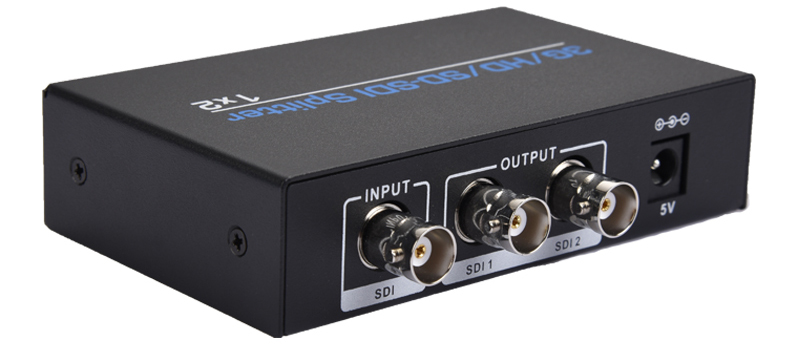

1x2-SDI-splitter

Part No.: SDT-102

SDT-102-003 web.jpg

SDT-102-004 web.jpg



1.0 Introduction

1×2 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.


2.0 Features

1.1 SDI input signal split to 2 SDI sink devices.

2.Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

3.Built-in cable equilibrium, clock recovery and drive.

4.Supports resolutions up to 1920x1080@60Hz.

5.Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.


3.0 Specifications

Frequency Bandwidth------------------------------------------3Gbps

SDI Splitter Input Port------------------------------------------1 x BNC Female input port

SDI Splitter Output Ports---------------------------------------2 x BNC Female output ports

Power Supply---------------------------------------------------DC 5V 1A

ESD Protection Human Body Model---------------------------±8kV(air-gap discharge) ±4kV (contact discharge)

Dimensions (mm)-----------------------------------------------150 (L) X 65(W) X 25 (H)

Weight----------------------------------------------------------350g

Operating Temperature----------------------------------------0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature------------------------------------------20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity----------------------------------------------20 ~ 90% RH (Non-condensing)

Power Consumption (Max)------------------------------------1.5W

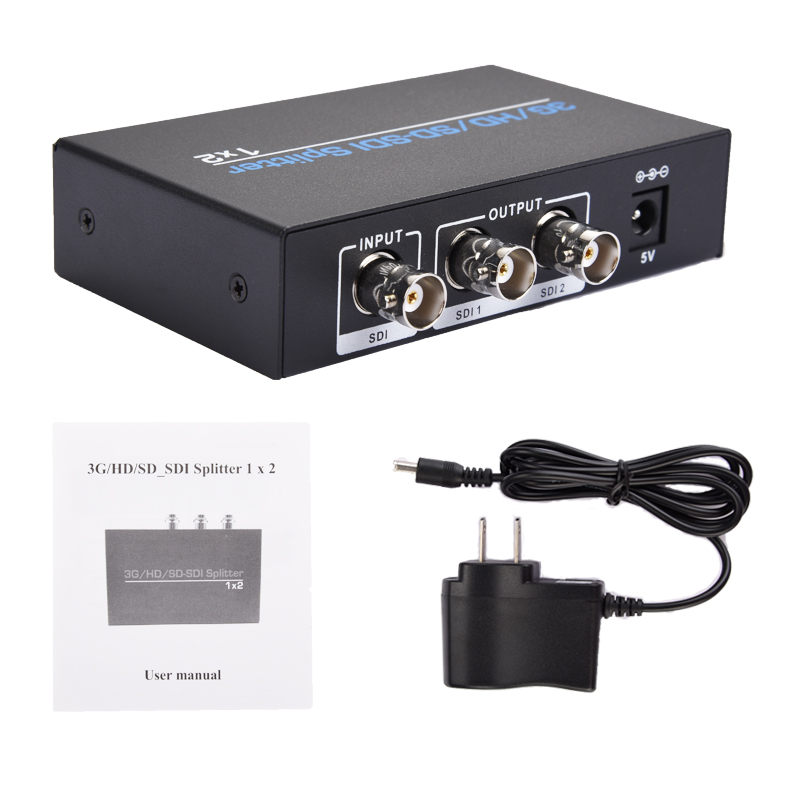

4.0 Package

(1)1x2 SDI Splitter ---------------------------------------------1PCS

(2)5V1A DC Power Supply adapter ---------------------------1PCS

(3)Operation Manual -----------------------------------------1PCS

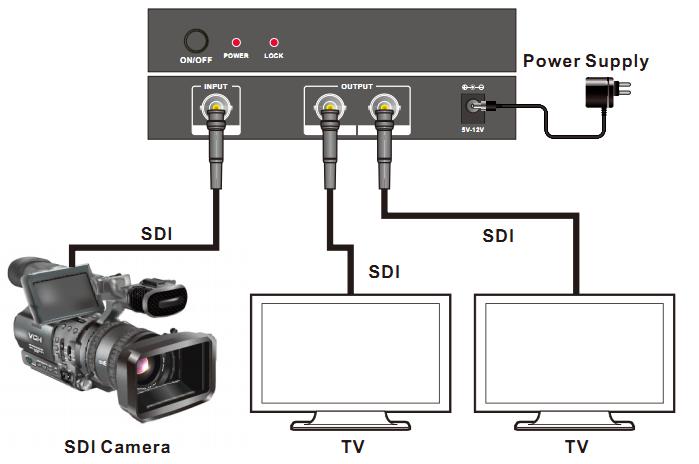

5.0 Application diagram

SDT-102 diagram.jpg
