1080P HDMI extender over coaxial cable 100m
Extend HDMI signal over 100m Coaxial cable
Resolution up to 1080P@60Hz
Support IR

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

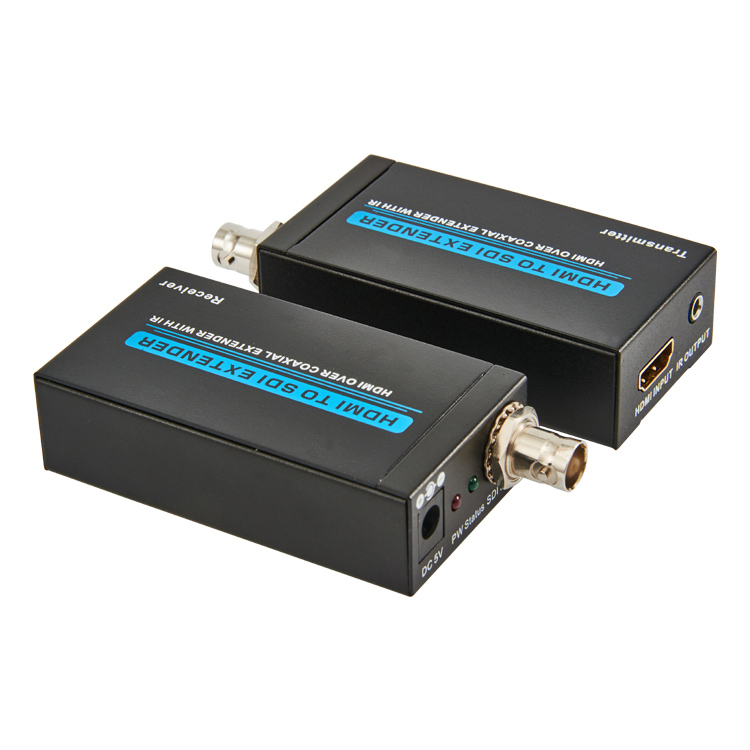

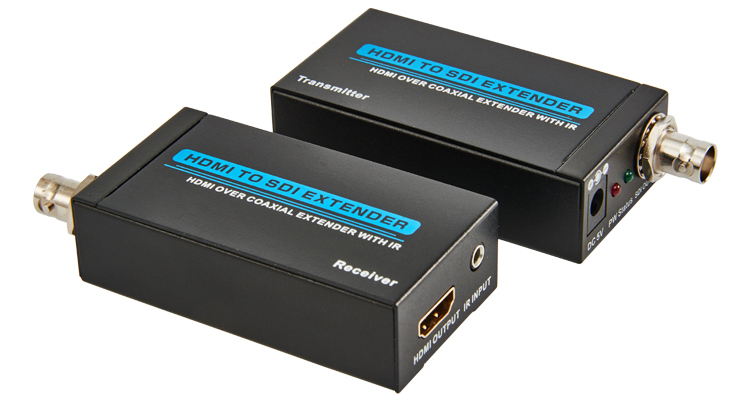

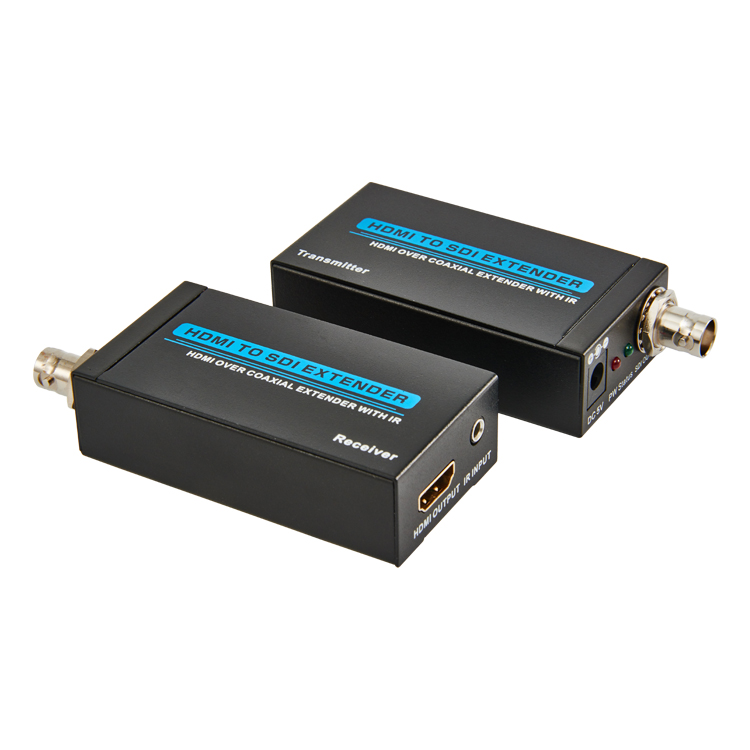

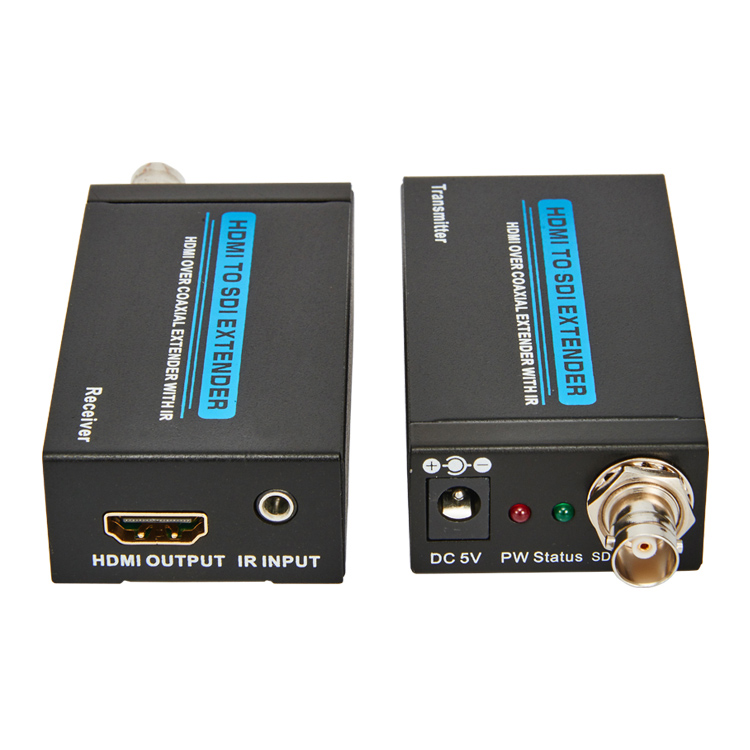

1080P HDMI extender over coaxial cable 100m

Part No.: VT-509A

VT-509A-001 WEB.jpg


1.0 Introduction

HDMI to SDI extenders, HDMI signal can be transmitted over long distances via a single coaxial cable, which has extended transmission speed, uncompressed, zero latency, etc., can greatly reduce the cost of long-distance transmission of HDMI signal transmission distance of 100-300 meters.


2.0 Features

1. SDI interface operates at bit rates of 2.970 G bit/s, 2.970/1.001G bit/s, 1.485 G bit/s, 1.485/1.001G bit/s and 270 Mb/s.

2. Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.

3. HDMI TO SDI EXTEDNER:

(3.1) 480i/576i to SD-SDI (SMPTE 259M-C, at bit rates of 270 M bit/s), 720p/1080i to HD-SDI (SMPTE 292M, at bit rates of 1.485 G bit/s or 1.485/1.001 G bit/s)

(3.2 )1080p to 3G-SDI (SMPTE 424M/425M-AB, at bit rates of 2.970 G bit/s and 2.970/1.001 G bit/s)

4. SDI Extender supports distance between TX to RX:100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

5.Support 20~60KHz IR.


3.0 Package contents

HDMI Extender TX---------------------------------x1

HDMI Extender RX---------------------------------x1

IR TX---------------------------------------------------x1

IR RX---------------------------------------------------x1

5V1A DC Power Supply Adaptor----------------x2

Operation Manual-----------------------------------x1

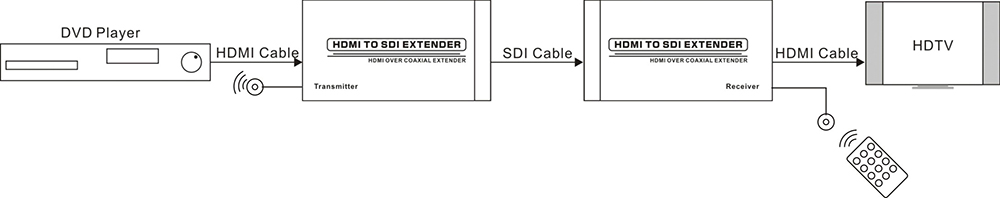

4.0 Diagram

SDI diagram.jpg
